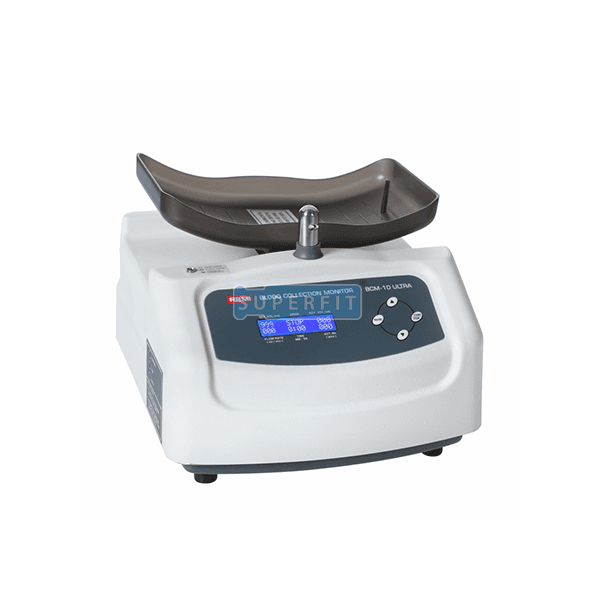

BCM 10 ULTRAREMI BCM-10 Ultra, A new generation portable blood mixer, ideally suited for blood collections in donation room as well as outdoor camps. Inbuilt key features along with microprocessor based controls ensure smooth & gentle mixing process, volume accuracy, precise monitoring of time & flow rate.The user friendly features of BCM 10 Ultra help phlebotomist to have complete control on donation process, thus ensuring donor safety & comfort.
Precise control on volume collection (Microprocessor based system), best in class accuracy (deviation
Automatic tarring of blood Bags
Automatic change over on battery mode in case of power failure (Battery Backup 10 hrs)Pause facility to temporarily suspend the donation process
Gentle & smooth motorized clamping of blood bag tube prevents damage to the live blood cells
Broad base tray with non-slip surface accommodates all type of blood bags
Automatic release of the bag when lifted, after donation.Removable magnetic cradle: Single grip tray removal
Recall of last blood collection parameter
Audio Visual Alarm
Flow rate ( 180 ml/min),Completion of collection
Battery depletion
Visual Indication & Displays
Set volume (ml)Actual volume (ml)Collection Process status (Run / Stop / Pause)Actual weight (gm)Flow Rate (ml/min)Time of collection (min)Battery status
| Parameter | BCM 10 Ultra |
|---|---|
| W x D x H (mm) | .280 x 270 x 255Net WeightKg.5ComplianceIEC 60601-1, IEC 60601-1-2Electrical220 – 240 volts 50Hz, SINGLE PHASEBCM 20 ULTRAREMI BCM-20 Ultra, Next generation blood collection monitor with interactive multicolor LCD |
| display | . Helps technicians to follow the SOP’s ensuring standardization of the collection process.Removable magnetic tray ensures easy maintenance & transportation. The long lasting battery backup of 24 Hrs makes it an ideal choice for outdoor camps.SALIENT FEATURESInteractive multicolor |
| display | Adjustable |
| alarm | volumeEncapsulated design allowing easy claing.No liquid instrusion in the deviceCarrying Case for device including all accessoriesIntegrated Calibration function with the use of weightsPause facility to temporarily suspend the donation processPrecise control on volume collection (Microprocessor based system), best in class accuracy (deviationRemovable Magnetic Cradle: single grip tray removalAutomatic tarring of blood Bags weightAutomatic release of the bag when lifted,after donation.Automatic central parkingRecall of last blood collection parameterAudio Visual |
| Alarm | Flow rate ( 180 ml/min),Completion of collectionBattery depletionVisual Indication & |
| Display | sSet volume (ml)Actual volume (ml)Collection Process status (Run / Stop / Pause)Actual weight (gm)Flow Rate (ml/min)Time of collection (min)Battery statusTechnical SpecificationsParameterBCM 20 UltraMixingCycle / minute12-14Battery backup / ratingHoursUp to 24 (with overcharge protection)Max. VolumemlUp to 999 (net collection)Maximum Taring |
| Capacity | gmUp to 999 gm |
| W x D x H (Mm) | 275 x 318 x 205Net WeightKg.5ComplianceIEC 60601-1, IEC 60601-1-2Electrical220-240 volts, 50 Hz, SINGLE PHASE |
