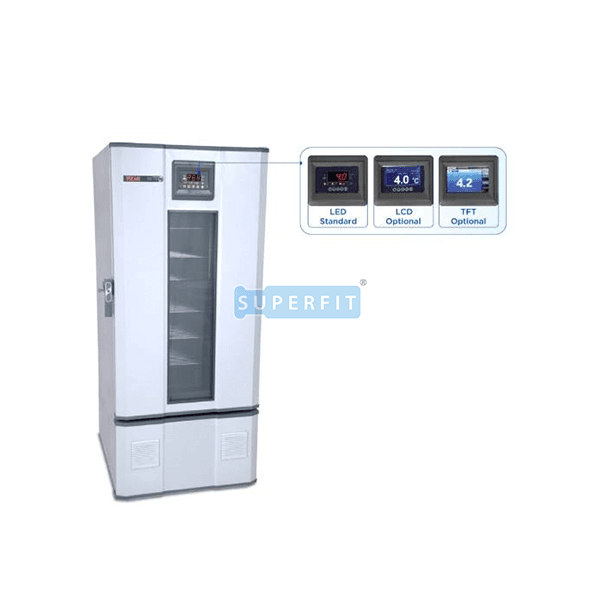

REMI Cold Cabinets are designed for bio sample storage applications in pharmaceutical, microbiology, biotechnology, chemical & research labs.THESE CABINETS ARE AVAILABLE IN STANDARD & GMP VERSIONS
Temperature range 2 °C to 12 °CUnique design of thermal barrier for better energy efficiency
Machine filled PUF insulation to eliminate void pockets
Powerful fan motor for forced air circulation to maintain uniform conditions inside chamber
Chamber calibration port on side
Adjustable trays
Hermetically sealed Compressor with CFC free refrigerant
Alarms for high / low set parameters
Sensor failure alarm
Electrical circuit breaker
Time delay for compressor switch on
Overload cut off relay for compressor
Rounded inner chamber for easy cleaning
Attractive door profile
Microprocessor controller with LED display of Temperature with set, process value & audio visual alarm (standard)Weight carrying capacity of each tray: 30 Kg Uniformly distributed
Auto door closer
Smart Handle with LED door closure indication
Optional4? LCD display with additional features (Details overleaf)Touch screen display ( TFT ) with additional features(Details overleaf)Validation protocol with IQ, OQ, PQ Documentation
Port for calibration probes / safety back up
| Model | CC-6 Plus | CC-10 Plus | CC-12 Plus | CC-16 Plus | CC-19 Plus | CC-28 Plus | CC-35 Plus |
|---|---|---|---|---|---|---|---|
| Temperature Range | & Accuracy2°C to 12°C, ± 0.5°CTemperature controlMicroprocessor with PT-100 sensor | & Accuracy2°C to 12°C, ± 0.5°CTemperature controlMicroprocessor with PT-100 sensor | & Accuracy2°C to 12°C, ± 0.5°CTemperature controlMicroprocessor with PT-100 sensor | & Accuracy2°C to 12°C, ± 0.5°CTemperature controlMicroprocessor with PT-100 sensor | & Accuracy2°C to 12°C, ± 0.5°CTemperature controlMicroprocessor with PT-100 sensor | & Accuracy2°C to 12°C, ± 0.5°CTemperature controlMicroprocessor with PT-100 sensor | & Accuracy2°C to 12°C, ± 0.5°CTemperature controlMicroprocessor with PT-100 sensor |
| Display | 1?- 7 Segment, Big Size LEDPower Failure | 1?- 7 Segment, Big Size LEDPower Failure | 1?- 7 Segment, Big Size LEDPower Failure | 1?- 7 Segment, Big Size LEDPower Failure | 1?- 7 Segment, Big Size LEDPower Failure | 1?- 7 Segment, Big Size LEDPower Failure | 1?- 7 Segment, Big Size LEDPower Failure |
| Alarm | Visual | Visual | Visual | Visual | Visual | Visual | Visual |
| Alarm | Door Open | Door Open | Door Open | Door Open | Door Open | Door Open | Door Open |
| Alarm | Audio Visual | Audio Visual | Audio Visual | Audio Visual | Audio Visual | Audio Visual | Audio Visual |
| Alarm | in case door open for over one minuteTemperature Variation | in case door open for over one minuteTemperature Variation | in case door open for over one minuteTemperature Variation | in case door open for over one minuteTemperature Variation | in case door open for over one minuteTemperature Variation | in case door open for over one minuteTemperature Variation | in case door open for over one minuteTemperature Variation |
| Alarm | Set Temperature ± 2°C, Audio Visual | Set Temperature ± 2°C, Audio Visual | Set Temperature ± 2°C, Audio Visual | Set Temperature ± 2°C, Audio Visual | Set Temperature ± 2°C, Audio Visual | Set Temperature ± 2°C, Audio Visual | Set Temperature ± 2°C, Audio Visual |
| Alarm | Illumination8 Watts Fluorescent TubeInternal Body MaterialStainless Steel – 304 grade (Standard Models), Stainless Steel – 316 grade (GMP Models]External Body MaterialPowder Coated CRCA Steel (Standard Models), Stainless Steel – 304 grade (GMP Models] | Illumination8 Watts Fluorescent TubeInternal Body MaterialStainless Steel – 304 grade (Standard Models), Stainless Steel – 316 grade (GMP Models]External Body MaterialPowder Coated CRCA Steel (Standard Models), Stainless Steel – 304 grade (GMP Models] | Illumination8 Watts Fluorescent TubeInternal Body MaterialStainless Steel – 304 grade (Standard Models), Stainless Steel – 316 grade (GMP Models]External Body MaterialPowder Coated CRCA Steel (Standard Models), Stainless Steel – 304 grade (GMP Models] | Illumination8 Watts Fluorescent TubeInternal Body MaterialStainless Steel – 304 grade (Standard Models), Stainless Steel – 316 grade (GMP Models]External Body MaterialPowder Coated CRCA Steel (Standard Models), Stainless Steel – 304 grade (GMP Models] | Illumination8 Watts Fluorescent TubeInternal Body MaterialStainless Steel – 304 grade (Standard Models), Stainless Steel – 316 grade (GMP Models]External Body MaterialPowder Coated CRCA Steel (Standard Models), Stainless Steel – 304 grade (GMP Models] | Illumination8 Watts Fluorescent TubeInternal Body MaterialStainless Steel – 304 grade (Standard Models), Stainless Steel – 316 grade (GMP Models]External Body MaterialPowder Coated CRCA Steel (Standard Models), Stainless Steel – 304 grade (GMP Models] | Illumination8 Watts Fluorescent TubeInternal Body MaterialStainless Steel – 304 grade (Standard Models), Stainless Steel – 316 grade (GMP Models]External Body MaterialPowder Coated CRCA Steel (Standard Models), Stainless Steel – 304 grade (GMP Models] |
| Insulation | 70 mm minimum for Body & 80 mm for Door, CFC free polyurethane foam | 70 mm minimum for Body & 80 mm for Door, CFC free polyurethane foam | 70 mm minimum for Body & 80 mm for Door, CFC free polyurethane foam | 70 mm minimum for Body & 80 mm for Door, CFC free polyurethane foam | 70 mm minimum for Body & 80 mm for Door, CFC free polyurethane foam | 70 mm minimum for Body & 80 mm for Door, CFC free polyurethane foam | 70 mm minimum for Body & 80 mm for Door, CFC free polyurethane foam |
| Noise | LevelLess Than 65 db(A) | LevelLess Than 65 db(A) | LevelLess Than 65 db(A) | LevelLess Than 65 db(A) | LevelLess Than 65 db(A) | LevelLess Than 65 db(A) | LevelLess Than 65 db(A) |
| Recommended Voltage Stabilizer | VS-02VS-02VS-02VS-03V5-03VS-06VS-06 | VS-02VS-02VS-02VS-03V5-03VS-06VS-06 | VS-02VS-02VS-02VS-03V5-03VS-06VS-06 | VS-02VS-02VS-02VS-03V5-03VS-06VS-06 | VS-02VS-02VS-02VS-03V5-03VS-06VS-06 | VS-02VS-02VS-02VS-03V5-03VS-06VS-06 | VS-02VS-02VS-02VS-03V5-03VS-06VS-06 |
| Supply | 220-240 volts, 50 Hz single phase | 220-240 volts, 50 Hz single phase | 220-240 volts, 50 Hz single phase | 220-240 volts, 50 Hz single phase | 220-240 volts, 50 Hz single phase | 220-240 volts, 50 Hz single phase | 220-240 volts, 50 Hz single phase |
