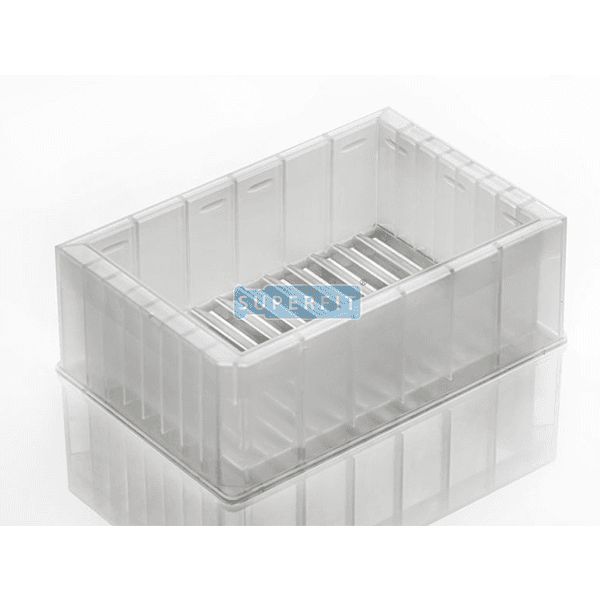

Genaxy offers a wide range of plates to support different applications and levels of throughput. Our storage plates are produced in cleanroom facilities which are certified free of DNase, RNase, human genomic DNA and endotoxins. We use only the highest medical grade virgin polypropylene with high resistance against chemicals such as DMSO, phenol, and chloroform. Our storage plates have a standard SBS footprint and are therefore compatible with robotics and automation.Reservoir Plates
Medical grade 99.9% virgin polypropylene with high resistance against chemicals such as DMSO, phenol, and chloroform
Certified DNase, RNase, Human genomic DNA and Endotoxins free
SBS footprint with alphanumeric labellin
Rectangular Channels ensures the best use of space and allow the use of multichannel pipettes
Pyramid channel bases are best for small volume recovery
Suitable as a collection plate from filter system
Non-Sterile (standard – sterilisation available upon request)Temperature range: -80° C to 120°CStackable and autoclavable
Genaxy Reservoir Plates are perfect for storing volumes of samples to be pipetted into other microplates for further applications. Pyramid Channel Bases are perfect for maximum sample retrieval. Even the smallest volume can be retrieved as it gathers in the base of the pyramid, and can be easily taken-up by a pipette. Both the open format plate and the 12 channel plate have pyramid bases. Open and 12 column formats are compatible with standard 12 and 96 well channel pipettes, and are suitable for automated systems.
| Catalog No. | Description | Qty./Pack |
|---|---|---|
| GEN-013121 | ml Reservoir Plate, 12 Channel format, pyramid base, clear polypropylene5 x | 5 plates |
| GEN-0133290 | ml Reservoir Plate, open format,12 channel pyramid base, clear polypropylene5 x 5 plates384 Deep Well Storage MicroplateMedical grade 99.9% virgin polypropylene with high resistance against chemicals such as DMSO, phenol, and chloroformCertified DNase, RNase, Human genomic DNA and Endotoxins freeSBS footprint with alphanumeric labellingConical V-bottoms are best for precipitation, centrifugation and small volume recovery, as the liquid gathers at the lowest point of the V for easy pipettingSquare Wells makes the best use of space, and improves mixingTemperature range: -80° C to 120°CNon-Sterile (standard – sterilisation available upon request)Stackable and autoclavableThe plate can be sealed with adhesive sealing, heat sealing or silicon sealing matGenaxy 384 Deep Well Storage Plate is designed for high density sample collection and storage, for a wide array of applications such as cell biology, molecular biology and drug discovery. The V shaped wells allow for complete sample retention with pipettes, and ultra-flat top for a completely uniform seal, either with adhesive or heat seals, or with silicone sealing mat.190 ?l square wells, V shaped bases, clear polypropyleneCatalog No.DescriptionQty./Pack | |
| GEN-0147384 | Well Deep Well Storage Microplate, 190 ?l square wells, 100 platesV shaped bases, clear polypropylene | 100 plates |
| GEN-0139 | Silicone Sealing Cap Mat, clear, with 384 square caps50 matsSquare 96 Deep Well Storage PlatesMedical grade 99.9% virgin polypropylene with high resistance against chemicals such as DMSO, phenol, and chloroformCertified DNase, RNase, Human genomic DNA and Endotoxins freeSBS footprint with alphanumeric labellingU-Bottoms are best for washing, mixing and pelleting and give high surface area; available in 1.2 ml and 2.2 ml volumeConical V-Bottoms are best for precipitation, centrifugation and small volume recovery, as the liquid gathers at the lowest point of the V for easy pipetting; available in 2.2 ml volume.Square Wells makes the best use of space, and improves mixing.Temperature range for use -80° C to 120°CStackable and non-Sterile (standard – sterilisation available upon request)The plate can be sealed with adhesive sealing, heat sealing or silicon sealing matGenaxy square 96 deep well storage plates come in three formats – 1.2 ml volume U shaped well plates, 2.2 ml volume V shaped, and 2.2 ml volume U shaped well plates. These popular plates are designed for high density sample collection and storage for a wide array of applications, such as cell biology, molecular biology and drug discovery. All of these plates are ultra-flat for a completely uniform seal; either with adhesive or heat seals or with silicone sealing mat.1.2 ml or 2.2 ml square wells, U or V shaped bases, clear polypropyleneCatalog No.DescriptionQty./Pack | |
| GEN-012696 | Deep Well Storage Microplate, 1.2 ml square wells, U shaped bases, clear polypropylene10 x | 10 plates |
| GEN-013296 | Deep Well Storage Microplate, 2.2 ml square wells, V shaped bases, clear polypropylene10 x | 5 plates |
| GEN-013696 | Deep Well Storage Microplate, 2.2 ml square wells, U shaped bases, clear polypropylene5 x | 10 plates |
| GEN-0137 | Silicone Sealing Cap Mat, clear, with 96 square caps50 matsRound 96 Well Storage PlatesMedical grade 99.9% virgin polypropylene with high resistance against chemicals such as DMSO, phenol, and chloroformCertified DNase, RNase, Human genomic DNA and Endotoxins freeSBS footprint with alphanumeric labellingU-Bottoms are best for washing, mixing and pelleting and give high surface areaConical V-Bottoms are best for precipitation, centrifugation and small volume recovery, as the liquid gathers at the lowest point of the V for easy pipetting.Round Wells are suitable for most applications as they reduce droplet effects and wicking.Suitable as a collection plate from filter systemsTemperature range for use -80° C to 120°CStackable And autoclavableNon-Sterile (standard – sterilisation available upon request)Genaxy Round 96 well storage microplates are particularly suitable for collection and preservation of samples widely used in cell biology research, molecular biology research, and drug discovery. Four formats are available of this plate – a U-bottom plate with 300 ?l or 350 ?l well volumes, and a V-bottom plate with 200 ?l or 350 ?l well volume. A Low Binding plate with ultra-low DNA binding properties for sensitive applications such as Next Generation Sequencing sample preparation also available.. The plates are made of selected low binding polymers; no coating is used to achieve the binding characteristics.200 ?l, 300 ?l or 350 ?l round wells, U or V shaped bases, clear polypropyleneCatalog No.DescriptionQty./Pack | |
| GEN-LB010996 | Well Storage Microplate, 200 ?l round wells, V shaped bases, clear polypropylene, Low Binding | 50 plates |
| GEN-011096 | Well Storage Microplate, 300 ?l round wells, U shaped bases, clear polypropylene | 100 plates |
| GEN-011696 | Well Storage Microplate, 350 ?l round wells, U shaped bases, clear polypropylene10 x | 10 plates |
| GEN-011796 | Well Storage Microplate, 350 ?l round wells, V shaped bases, polypropylene10 x 10 platesclear | |
| GEN-0138 | Silicone Sealing Cap Mat, clear, with 96 round caps(not for use with | |
| GEN-0110 | )50 matsRound 96 Deep Well Storage PlatesMedical grade 99.9% virgin polypropylene with high resistance against chemicals such as DMSO, phenol, and chloroformCertified DNase, RNase, Human genomic DNA and Endotoxins freeSBS footprint with alphanumeric grid referenceU-Shaped Base is best for washing, mixing and pelleting, and give a high surface area.Round Wells are suitable for most applications, as they reduce droplet effects and wicking.Suitable as a collection plate from filter systemsTemperature range for use -80°C to 120°CStackable and autoclavableNon-Sterile (standard – sterilisation available upon request)Genaxy 96 deep well storage microplates are suitable for many manual and automated protocols, such as the Illumina® library and sample preparations, due to the plates’ SBS footprint. Additionally, they are suitable for use on magnetic plates for bead separation protocols. Our round deep well storage microplates are available in two types of well volumes – 1.2 ml wells and 2.0 ml wells. Both of these plates are ultra-flat for a completely uniform seal.1.2 ml or 2.0 ml round wells, U shaped bases, clear polypropyleneCatalog No.DescriptionQty./Pack | |
| GEN-012096 | Deep Well Storage Microplate, 1.2 ml round wells, U shaped bases, clear polypropylene | 50 plates |
| GEN-013096 | Deep Well Storage Microplate, 2.0 ml round wells, U shaped bases, clear polypropylene | 50 plates |
| GEN-0135 | Silicone Sealing Cap Mat, white, with 96 round caps (for | |
| GEN-0120 | only)100 mats | |
| GEN-0138 | Silicone Sealing Cap Mat, clear, with 96 round caps (not for | |
| GEN-0120 | and | |
| GEN-0110 | )50 mats |
