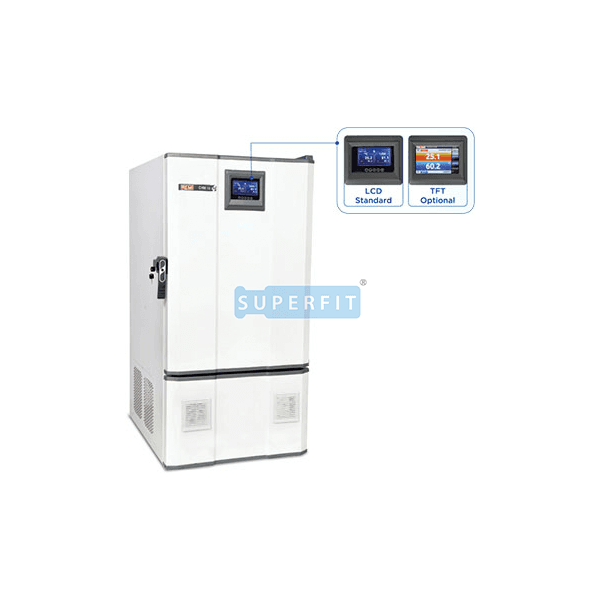

REMI Humidity Chambers are designed for testing of electronic, electrical components, corrosion studies on mechanical parts, shelf life studies on paints, varnishes and cement at respective manufacturing facilities. These chambers control precise temperature and Humidity.These chambers are available in standard & GMP versions.
Precise monitoring of temperature and humidity conditions
Temperature range 10°C to 60°C, Humidity range 40% to 95% RHUnique design of thermal barrier for better energy efficiency
Machine filled CFC free PUF insulation to eliminate void pockets
Powerful fan motor for forced air circulation to maintain uniform conditions inside chamber
Heating by long life SS tubular heaters
Hermetically sealed Compressor with CFC free refrigerant
Chamber calibration port on side
Adjustable trays
Output for remote alarm
Microprocessor controller with LCD display & capacitance type sensor4? attractive LCD display for direct display of humidity & temperature
Auto tuning of controller
Settable High / low alarm points with date and time
Centronic interface to record Temperature, Humidity, Date & Time by attaching Dot Matrix printer with Adjustable print interval
Remi “Datasoft”™ data acquisition software as per 21 CFR part 11 requirements (Optional)Power failure and resumption recorded with date and time
PC communication through RS-485 with data acquisition software
High temperature safety cut off & alarms for high / lowset parameters
Low water level alarm and power cutoff of boiler tank heater
Overload cut off relay for compressor
Rounded inner chamber for easy cleaning
Attractive door profile
Data logger for 8 Point (4+4) temperature / humidity recording with sensor, printer interface and software (Optional)Weight carrying capacity of each tray : 15 Kg Uniformly distributed
Auto door Closer
Smart Handle with LED door Closure indication
Optional
Touch screen display ( TFT ) with additional features(Details overleaf)Validation protocol with IQ, OQ, PQ Documentation
Port for calibration probes / safety back up
LCD DISPLAY4 Inch attractive LCD display
Intelligent Controller helps maintain temperature in case of sensor failure
Battery Backup for Temperature Controller
Auto tuning of controller
Self-Diagnosis for errors
Histogram format of 24 hours temperature recording
Power failure and resumption recorded with date and time
Settable High / low alarm points
Memory for storage of upto 1000 records
Centronic interface to record Temperature, Date, & Time by attaching Dot Matrix printer with adjustable print interval
Alarm on equipment / output for remote alarm
| Model | CHM-6 Plus | CHM-10 Plus | CHM-12 Plus | CHM-16 Plus | CHM-19 Plus | CHM-28 Plus | CHM-35 Plus |
|---|---|---|---|---|---|---|---|
| W x D x H | (mm)660 x 655 x 450660 x 655 x 650660 x 655 x 850660 x 655 x 1050660 x 655 x 1250800 x 800 x 1250800 x 800 x 1580External Dimensions | (mm)660 x 655 x 450660 x 655 x 650660 x 655 x 850660 x 655 x 1050660 x 655 x 1250800 x 800 x 1250800 x 800 x 1580External Dimensions | (mm)660 x 655 x 450660 x 655 x 650660 x 655 x 850660 x 655 x 1050660 x 655 x 1250800 x 800 x 1250800 x 800 x 1580External Dimensions | (mm)660 x 655 x 450660 x 655 x 650660 x 655 x 850660 x 655 x 1050660 x 655 x 1250800 x 800 x 1250800 x 800 x 1580External Dimensions | (mm)660 x 655 x 450660 x 655 x 650660 x 655 x 850660 x 655 x 1050660 x 655 x 1250800 x 800 x 1250800 x 800 x 1580External Dimensions | (mm)660 x 655 x 450660 x 655 x 650660 x 655 x 850660 x 655 x 1050660 x 655 x 1250800 x 800 x 1250800 x 800 x 1580External Dimensions | (mm)660 x 655 x 450660 x 655 x 650660 x 655 x 850660 x 655 x 1050660 x 655 x 1250800 x 800 x 1250800 x 800 x 1580External Dimensions |
| W x D x H | (mm)800 x 1095 x 1020800 x 1095 x 1220800 x 1095 x 1420800 x 1095 x 1620800 x 1095 x 1820960 x 1370 x 1950960 x 1370 x 2270 | (mm)800 x 1095 x 1020800 x 1095 x 1220800 x 1095 x 1420800 x 1095 x 1620800 x 1095 x 1820960 x 1370 x 1950960 x 1370 x 2270 | (mm)800 x 1095 x 1020800 x 1095 x 1220800 x 1095 x 1420800 x 1095 x 1620800 x 1095 x 1820960 x 1370 x 1950960 x 1370 x 2270 | (mm)800 x 1095 x 1020800 x 1095 x 1220800 x 1095 x 1420800 x 1095 x 1620800 x 1095 x 1820960 x 1370 x 1950960 x 1370 x 2270 | (mm)800 x 1095 x 1020800 x 1095 x 1220800 x 1095 x 1420800 x 1095 x 1620800 x 1095 x 1820960 x 1370 x 1950960 x 1370 x 2270 | (mm)800 x 1095 x 1020800 x 1095 x 1220800 x 1095 x 1420800 x 1095 x 1620800 x 1095 x 1820960 x 1370 x 1950960 x 1370 x 2270 | (mm)800 x 1095 x 1020800 x 1095 x 1220800 x 1095 x 1420800 x 1095 x 1620800 x 1095 x 1820960 x 1370 x 1950960 x 1370 x 2270 |
| Temperature Range | & Accuracy10°C to 60°C, ± 1°CHumidity Range (Rh) & Accuracy40% to 95%, ± 3%Temperature & Humidity controlMicroprocessor with Capacitance type sensor | & Accuracy10°C to 60°C, ± 1°CHumidity Range (Rh) & Accuracy40% to 95%, ± 3%Temperature & Humidity controlMicroprocessor with Capacitance type sensor | & Accuracy10°C to 60°C, ± 1°CHumidity Range (Rh) & Accuracy40% to 95%, ± 3%Temperature & Humidity controlMicroprocessor with Capacitance type sensor | & Accuracy10°C to 60°C, ± 1°CHumidity Range (Rh) & Accuracy40% to 95%, ± 3%Temperature & Humidity controlMicroprocessor with Capacitance type sensor | & Accuracy10°C to 60°C, ± 1°CHumidity Range (Rh) & Accuracy40% to 95%, ± 3%Temperature & Humidity controlMicroprocessor with Capacitance type sensor | & Accuracy10°C to 60°C, ± 1°CHumidity Range (Rh) & Accuracy40% to 95%, ± 3%Temperature & Humidity controlMicroprocessor with Capacitance type sensor | & Accuracy10°C to 60°C, ± 1°CHumidity Range (Rh) & Accuracy40% to 95%, ± 3%Temperature & Humidity controlMicroprocessor with Capacitance type sensor |
| Display | 4? LCD Screen, Large size | 4? LCD Screen, Large size | 4? LCD Screen, Large size | 4? LCD Screen, Large size | 4? LCD Screen, Large size | 4? LCD Screen, Large size | 4? LCD Screen, Large size |
| Display | for ease of readingPower Failure | for ease of readingPower Failure | for ease of readingPower Failure | for ease of readingPower Failure | for ease of readingPower Failure | for ease of readingPower Failure | for ease of readingPower Failure |
| Alarm | Visual | Visual | Visual | Visual | Visual | Visual | Visual |
| Alarm | Door Open | Door Open | Door Open | Door Open | Door Open | Door Open | Door Open |
| Alarm | Audio Visual | Audio Visual | Audio Visual | Audio Visual | Audio Visual | Audio Visual | Audio Visual |
| Alarm | in case door open for over one minuteTemperature / Humidity Variation | in case door open for over one minuteTemperature / Humidity Variation | in case door open for over one minuteTemperature / Humidity Variation | in case door open for over one minuteTemperature / Humidity Variation | in case door open for over one minuteTemperature / Humidity Variation | in case door open for over one minuteTemperature / Humidity Variation | in case door open for over one minuteTemperature / Humidity Variation |
| Alarm | Set Humidity ± 3%, Set Temperature ± 1°C, Audio Visual | Set Humidity ± 3%, Set Temperature ± 1°C, Audio Visual | Set Humidity ± 3%, Set Temperature ± 1°C, Audio Visual | Set Humidity ± 3%, Set Temperature ± 1°C, Audio Visual | Set Humidity ± 3%, Set Temperature ± 1°C, Audio Visual | Set Humidity ± 3%, Set Temperature ± 1°C, Audio Visual | Set Humidity ± 3%, Set Temperature ± 1°C, Audio Visual |
| Alarm | Illumination8 Watts Fluorescent TubeInternal Body MaterialStainless Steel – 304 grade (Standard Models), Stainless Steel – 316 grade (GMP Models)External Body MaterialPowder Coated CRCA Steel (Standard Models), Stainless Steel – 304 grade (GMP Models) | Illumination8 Watts Fluorescent TubeInternal Body MaterialStainless Steel – 304 grade (Standard Models), Stainless Steel – 316 grade (GMP Models)External Body MaterialPowder Coated CRCA Steel (Standard Models), Stainless Steel – 304 grade (GMP Models) | Illumination8 Watts Fluorescent TubeInternal Body MaterialStainless Steel – 304 grade (Standard Models), Stainless Steel – 316 grade (GMP Models)External Body MaterialPowder Coated CRCA Steel (Standard Models), Stainless Steel – 304 grade (GMP Models) | Illumination8 Watts Fluorescent TubeInternal Body MaterialStainless Steel – 304 grade (Standard Models), Stainless Steel – 316 grade (GMP Models)External Body MaterialPowder Coated CRCA Steel (Standard Models), Stainless Steel – 304 grade (GMP Models) | Illumination8 Watts Fluorescent TubeInternal Body MaterialStainless Steel – 304 grade (Standard Models), Stainless Steel – 316 grade (GMP Models)External Body MaterialPowder Coated CRCA Steel (Standard Models), Stainless Steel – 304 grade (GMP Models) | Illumination8 Watts Fluorescent TubeInternal Body MaterialStainless Steel – 304 grade (Standard Models), Stainless Steel – 316 grade (GMP Models)External Body MaterialPowder Coated CRCA Steel (Standard Models), Stainless Steel – 304 grade (GMP Models) | Illumination8 Watts Fluorescent TubeInternal Body MaterialStainless Steel – 304 grade (Standard Models), Stainless Steel – 316 grade (GMP Models)External Body MaterialPowder Coated CRCA Steel (Standard Models), Stainless Steel – 304 grade (GMP Models) |
| Insulation | 70 mm minimum for Body & 80 mm for Door, CFC free polyurethane foam | 70 mm minimum for Body & 80 mm for Door, CFC free polyurethane foam | 70 mm minimum for Body & 80 mm for Door, CFC free polyurethane foam | 70 mm minimum for Body & 80 mm for Door, CFC free polyurethane foam | 70 mm minimum for Body & 80 mm for Door, CFC free polyurethane foam | 70 mm minimum for Body & 80 mm for Door, CFC free polyurethane foam | 70 mm minimum for Body & 80 mm for Door, CFC free polyurethane foam |
| Noise | LevelLess Than 65 db(A) | LevelLess Than 65 db(A) | LevelLess Than 65 db(A) | LevelLess Than 65 db(A) | LevelLess Than 65 db(A) | LevelLess Than 65 db(A) | LevelLess Than 65 db(A) |
| Recommended Voltage Stabilizer | VS-04VS-07 | VS-04VS-07 | VS-04VS-07 | VS-04VS-07 | VS-04VS-07 | VS-04VS-07 | VS-04VS-07 |
| Supply | 220-240 Volts, 50 Hz Single Phase. | 220-240 Volts, 50 Hz Single Phase. | 220-240 Volts, 50 Hz Single Phase. | 220-240 Volts, 50 Hz Single Phase. | 220-240 Volts, 50 Hz Single Phase. | 220-240 Volts, 50 Hz Single Phase. | 220-240 Volts, 50 Hz Single Phase. |
