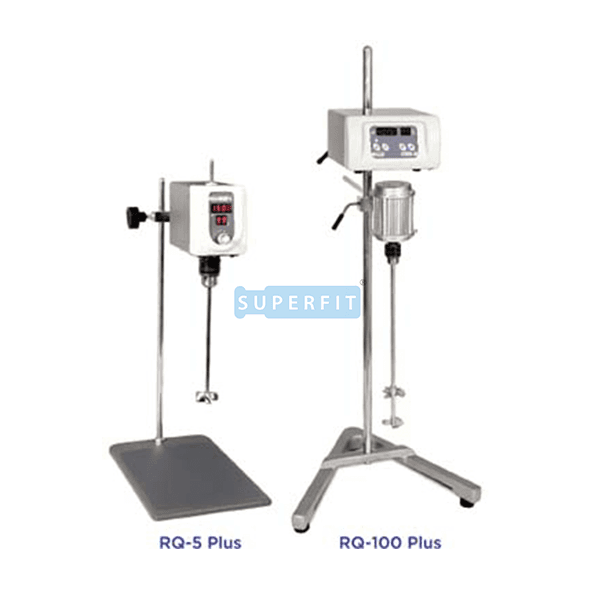

REMI presents the next generation of laboratory stirrers for stirring / mixing etc of chemical. pharmaceutical, food and cosmetic products. The equipment basically consists of body. Chuck, stainless steel blade propeller and a U-type stand.
High torque even at low speeds
Monitoring of set & actual speed
Wide range of impellers
Advanced Stirrers with microprocessor technology
Advanced Stirring speed control through VFD
Constant speed even with change of load / Voltage
Easy -to- read display of set & actual parameters
Last parameter recall. Ideal for repetitive processes
Accepts shafts up to 13mm
Motor protection in case of continuous overload
Stopper for protection of vessel & shaft
Special base design for topple free operation
| Features | RQ-5 |
|---|---|
| capacity | (Water) (Liters)5100Motor TypeBLDCAC Induction, 3 phaseMotor rating10 watt100 wattSpeed range [rpm]50-1500100-4000Speed |
| display | LEDLED |
| Timer | 0 to 99 Minutes0 to 99 MinutesMotor Overload protectionLED light flash, auto stopLED light flash, auto stopChuck (mm)1.5 to 101.5 to 13Stirring Shaft x length (mm)6 x 380 mm12 x 500Impeller Type / (mm)Axial Turbine / 36Pitched x 2 / 65Dimensions [Wx D x H] (mm)80 x 180 x 370320 x 285 x 620Stand length (mm)5001220Weight [kg]6.519Power [W]10 watt175 watt |
