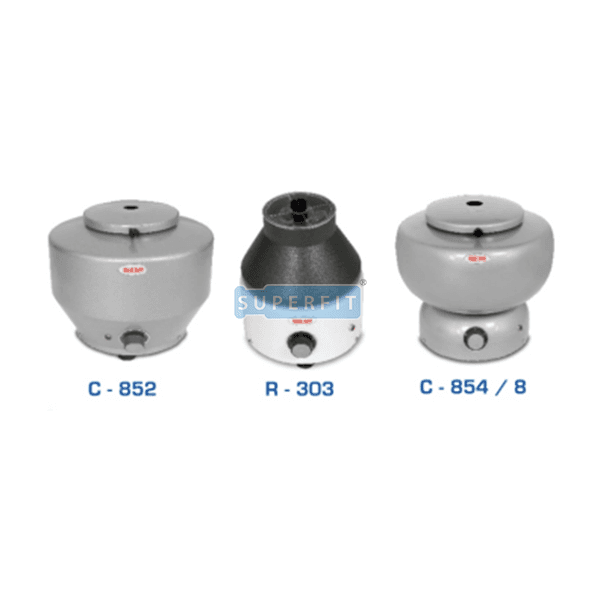

These are low priced units meeting the majority of the small capacity centrifuging requirements of medical practitioners, pathological laboratories and hospitals for routine centrifuging tests. The units are fitted with resiliently mounted motor for vibration free performance having built in 5 step speed regulator. Available with Swing out or Angle rotor.
| Models | C-852 | C-854/4 | C-854/6 | C-854/8 | R-303 | R-304 |
|---|---|---|---|---|---|---|
| Capacity (ml) | 4 x 15 | 4 x 15 | 6 x 15 | 8 x 15 | 8 x 15 | 24 x 5 |
| Type of Head | Swing OutAngle | Swing OutAngle | Swing OutAngle | Swing OutAngle | Swing OutAngle | Swing OutAngle |
| No. of Tubes | 4 | 4 | 6 | 8 | 8 | 24 |
| Max. Speed (RPM) | 3500 | 3500 | 3500 | 3500 | 3800 | 7000 |
| Max. RCF (‘g’) | 1750 | 1850 | 1600 | 1600 | 1450 | 4760 |
| W x D x M (mm) | 295 x 295 x 25; 310 x 310 x 295; 210 x 210 x 250 | 295 x 295 x 25; 310 x 310 x 295; 210 x 210 x 250 | 295 x 295 x 25; 310 x 310 x 295; 210 x 210 x 250 | 295 x 295 x 25; 310 x 310 x 295; 210 x 210 x 250 | 295 x 295 x 25; 310 x 310 x 295; 210 x 210 x 250 | 295 x 295 x 25; 310 x 310 x 295; 210 x 210 x 250 |
| Supply | 220-240 Volts 50 Hz SINGLE PHASE | 220-240 Volts 50 Hz SINGLE PHASE | 220-240 Volts 50 Hz SINGLE PHASE | 220-240 Volts 50 Hz SINGLE PHASE | 220-240 Volts 50 Hz SINGLE PHASE | 220-240 Volts 50 Hz SINGLE PHASE |
