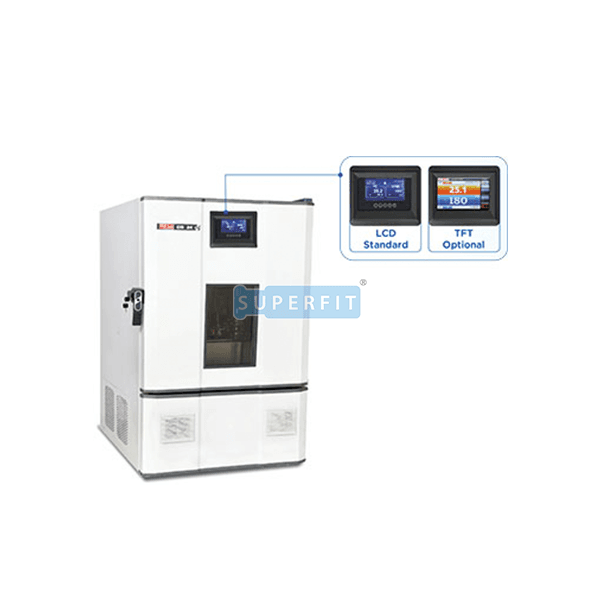

REMI Orbital Shaking Incubators are designed for precise temperature control and simultaneous shaking applications required in fermentations studies, enzyme reaction s, life sciences, tissue culture and biotechnology, research labs.These chambers are available in standard & GMP versions.
Brushless induction Motor with variable frequency drive suitable for continuous operations
Step less variable frequency drive ensures gentle shaking start and maintains set speed
Counter balanced mechanism for high stability in uneven load of different sized flasks
Universal Shaking Platform to accommodate different sized assorted flasks
Maximum shaking capacity – 9 Flasks x 2000 ml
Powerful fan motor for forced air circulation to maintain uniform conditions inside chamber
Machine filled CFC free PUF insulation to eliminate void pockets
Unique design of thermal barrier for better energy efficiency
Heating by long SS tubular heaters
Additional tray to store samples
Chamber calibration port on side
Hermetically sealed Compressor with CFC free refrigerant(CIS–24 Plus)Microprocessor controller with 4” LCD display for display ofshaking speed & temperature9 programs memory
High temperature safety cut off & alarms for high / low settemperature
Electrical circuit breaker
Time delay for compressor switch on (CIS–24 Plus)Overload cut off relay for compressor (CIS–24 Plus)Rounded inner chamber for easy cleaning
Attractive door profile
Weight carrying capacity of each tray : 15 Kg
Uniformly distributed
Auto door closer
Smart Handle with LED door closure indication
Optional
Touch screen display ( TFT ) with additional features(Details overleaf)Validation protocol with IQ, OQ, PQ Documentation
Port for calibration probes / safety back up
| Model | CIS-24 Plus | RIS-24 Plus |
|---|---|---|
| Temperature Range | & Accuracy5°C to 60°C, ± 0.5°C5°C above ambient to 60°C, ± 0.5°CInternal Volume (Liters) | 215Platform Size580mm x 600mmMaximum Shaking |
| Capacity | (Volume x No. of flasks)*100ml x 49, 150ml x 49, 250ml x 33, 500ml x 24, 1000ml x 15, 2000 ml x 9Shaking Speed range (RPM) | 20 to 250Shaking Amplitude25 mmInternal Dimensions |
| W x D x H | (mm) | 660 x 765 x 650External Dimensions |
| W x D x H | (mm) | 800 x 1150 x 1300Temperature controlMicroprocessor with PT-100 sensor |
| Display | 4? LCD Screen, Large size | 4? LCD Screen, Large size |
| Display | for ease of readingPower Failure | for ease of readingPower Failure |
| Alarm | Audio Visual | Audio Visual |
| Alarm | Door Open | Door Open |
| Alarm | Audio | Audio |
| Alarm | in case door open for over one minuteTemperature Variation | in case door open for over one minuteTemperature Variation |
| Alarm | Set Temperature ± 2°C, Audio Visual | Set Temperature ± 2°C, Audio Visual |
| Alarm | Illumination8 Watts Fluorescent TubeInternal Body MaterialStainless Steel – 304 grade (Standard Models), Stainless Steel – 316 grade (GMP Models)External Body MaterialPowder Coated CRCA Steel (Standard Models), Stainless Steel – 304 grade (GMP Models) | Illumination8 Watts Fluorescent TubeInternal Body MaterialStainless Steel – 304 grade (Standard Models), Stainless Steel – 316 grade (GMP Models)External Body MaterialPowder Coated CRCA Steel (Standard Models), Stainless Steel – 304 grade (GMP Models) |
| Insulation | (CFC free polyurethane foam) | 70 mm minimum for Body & 80 mm for Door |
| Noise | LevelLess Than 65 db (A) | LevelLess Than 65 db (A) |
| Recommended Voltage Stabilizer | VS-02X | VS-02X |
| Supply | 220-240 Volts, 50 Hz Single Phase.*Clamps to be ordered separately | 220-240 Volts, 50 Hz Single Phase.*Clamps to be ordered separately |
