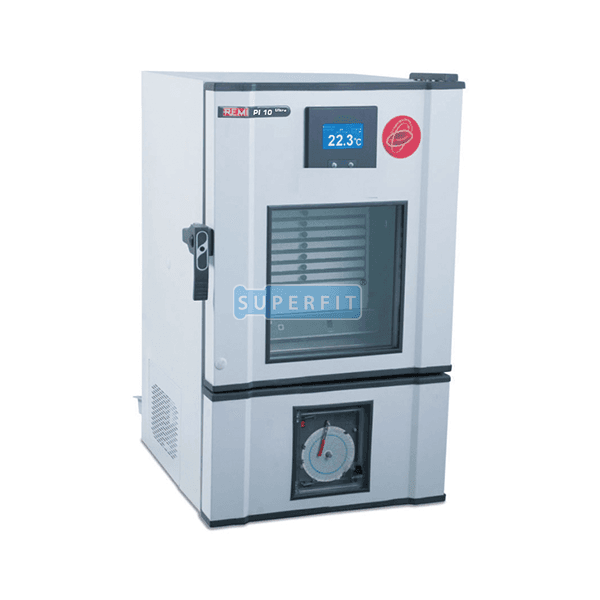

PLATELET INCUBATOR
Ultra range of REMI Platelet Incubator & Agitator are specially designed to meet the storage requirements of Platelet concentrate.TEMPERATURE CONTROL & MONITORING:Microprocessor integrated system provides excellent temperature accuracy. 7 days chart recorder & audio visual alarm system helps to indicate disturbance in storage conditions.INTELLIGENT CONTROLLER
In case of temperature controller failure, innovative “Clever-Chip” automatically takes control for continued operations.
:Refrigeration & precision pulse heating for achieving 22°C (± 1°C)Forced air circulation for temperature uniformity
Bacteria resistant powder coated exterior with high grade stainless steel Interior
LCD display of temperature, real date, real time, temperature histogram etc.Smart Handle with LED door closure indication
Auto stop / start feature pauses agitation when incubator door is opened
Safety Thermostat to prevent -ve & +ve temperature in additional to microprocessor controller
Swivel lockable castors with floor standing jacks
Triple pane tempered glass door
| Particulars | PI-10 Ultra |
|---|---|
| Alarm | s:Agitator Motion faultPower failureCompressor run (visual)Temperature Hi/Low (±2°C)Door openYes |
| Temperature accuracy | °C22 (Deviation ± 0.5)Internal VolumeLiters183 |
| Internal Dimension (W X D X H) (mm) | 540 X 520 X 634 |
| External Dimension (W X D X H) (mm) | 640 X 685 X 1185 |
| Insulation | Thicknessmm50 mmRecorderSeven days chart recorderBattery Backup (Controller)Rechargeable, 8 Hrs( |
| Display | , Recorder, |
| Alarm | system)Electrical220 – 240 volts, 50 Hz, Single PhaseLCD |
| DISPLAY | 4 Inch attractive LCD |
| display | Intelligent Controller helps maintain temperature in case of sensor failureBattery Backup for Temperature Controller |
| Display | s temp, |
| alarm | s, date & timeOnscreen access for last 24 Hrs data logs, temp. histogram & system statusAuto tuning of controllerSettable High / low |
| alarm | pointsMemory for storage of upto 1000 records |
| Alarm | on equipment / output for remote |
| alarm | PC communication through RS-485 with data acquisition softwareREMI ‘Datasoft’ software for generating various reports, SMS alerts & analysis (Optional)PLATELET AGITATOR – PR 10 ULTRAEasy Pull out, adjustable shelves ensures inventory managementPerforated flatbed shelves for uniform air circulationRobust motorized slide for effective 24X7 continuous jerk free agitationFixed speed agitation with optimum amplitude for better viability of plateletsTechnical SpecificationsParticularsPR-10 UltraAgitator controlMicroprocessorStokes (adjustable)Per min60 to 70Amplitudemm38 ± 2Dimensionmm440 X 410 X 395TraysNumber9 |
| Capacity | Platelet bags (RDP)54 |
