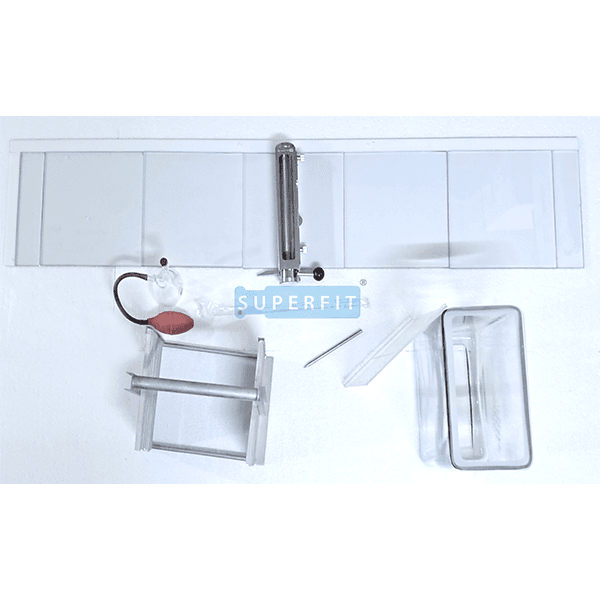

Tin Layer Chromatography Kit Model PC-9. This unit is base on German pattern Developed by thickness adjustment arrangement between 0 to movable 2mm.
| Model | Description |
|---|---|
| R/340 | Tin Layer Chromatography Kit Model PC-9. This unit is base on German pattern Developed by thickness adjustment arrangement between 0 to movable 2mm.Model PC-9 has the following components:-a) Spreader (Applicator) made of electroplated brass.b) Perspex base size 114 x 23 cm. to support 5 glass plates of size 20 x 20 or 10 of 20 x 10 cm. and two plates of 20 x 5 cm.c) Drying plate rack anodized alluminium for ten 20 x 20cm. plates.d) Spotting Template Perspex.e) Developing tank with lid.f) Five Glass plates 20 x 20cm. and two end plates 20 x 5 cm. or Ten 20 x 10 cm. and two 20 x 5 cm. plates.g) Micro pipette corning glass.h) Scriber.i) Glass Sprayer with rubber bellow.j) Instruction ManualOptional Accessories for T.L.C. Model PC-9 |
| R/340/02 | Draining rack for holding washed plates in angular position so that water can drop off over corner of wet plates before coating. |
| R/340/03 | Plate rack made of stainless steel to hold vertically two plates of 20 x 20 cm. in developing tank |
| R/34 | 0/ALDrying plate rack made of anodized alluminium for plates of 20 x 20 cm. |
| R/340/0 | 4T.L.C. Plate storage Teakwood Cabinet for transport and storage of coated plates, sealed against air humidity. Size: 38 x 23 x 20 cm. |
| R/340/05 | Dessicator Cabinet, this is used for storing plates in thin Layer Chromatography and for general laboratory work. Mae of hick alluminium sheet with stout glass door with rubber gasket. A tray for silica gel desiccant and two perforated shelves are provided.Inner DimensionHeight x Width x DepthSize 30 x 50 x 35cm.Replacement and Additional parts for T.L.C Model PC-9 |
| R/340/01 | Spare T.L.C. Applicator Electroplated Brass. Inbuilt thickness adjustment from 0-2 mm. (Minimum div 0.25mm) |
| R/340/08 | Spare Perspex base (white Acrylic) size 114 x 23cm. to support glass plates |
| R/340/07 | Spotting Template Perspex |
| R/340/11 | Glass plate all sides ground 20 x 20cm |
| R/340/13 | Glass plate all sides ground 20 x 10cm |
| R/340/15 | Glass plate all sides ground 20 x 5cm |
| R/340/17 | Chromatography tank with cover for 20 x 20 cm. plates |
| R/340/19 | Chromatography tank with cover for 20 x 10 cm. plates |
| R/340/21 | Chromatography tank with cover for 20 x 5 cm. plates |
| R/340/23 | Glass sprayer with rubber below. |
| R/340/2 | 5T.L.C. Micro pipettePipettes, Micro (Lambda) for T.L.C. single markCatalogue no.Capacity Lambda |
| R/340/27 | 5 |
| R/340/30 | 10 |
| R/340/32 | 25 |
| R/340/34 | 50 |
| R/340/36 | 100 |
| R/340/38 | 200 |
| R/340/40 | 250 |
| R/340/45 | 500 |
