C-mount USB 3.0 CMOS Cameras
Aptina/Panasonic CMOS Sensor

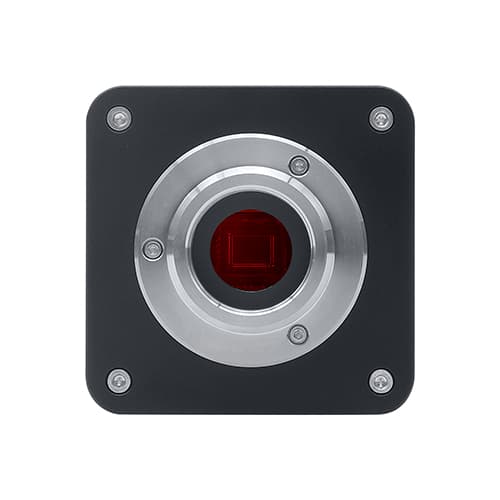

The E3CMOS is a high-performance USB 3.0 camera featuring either an OnSemi or Panasonic CMOS sensor for fast, detailed image capture. It supports 16 MP to 20 MP resolution and comes in a compact CNC aluminum alloy body. With its advanced 12-bit Super-fine™ Hardware Image Signal Processor (HISP VP), it handles tasks like demosaicing, auto exposure, gain and white balance adjustments, color correction, gamma, contrast, and more—offloading processing from the PC and significantly improving speed. It comes with the powerful MicroView software for video and image processing and supports Windows, Linux, macOS, and Android. SDKs are available in C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, and more. Ideal for well-lit environments and microscope image capture, the E3CMOS camera ensures smooth performance and higher frame rates.
| Model No. | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| E3CMOS16000CA | 16M/MN34120(C) 1/2.33” (6.18×4.66) | 1.335×1.335 | R: 2454LSB Gr: 2444LSB Gb: 1054LSB B: 996LSB | 6@4632×3488 15@2320×1740 26.0@1536×1160 | 1×1 2×2 3×3 | 0.2ms~2s |
| E3CMOS16000CB | 16M/MN34120(C) 1/2.33” (6.18×4.67) | 3.8×3.8 | R: 1315LSB Gr: 2413LSB Gb: 2413LSB B: 1042LSB (Gain = 0db) | 22@4640×3506 30@3360×2526 43@2304×1750 49@1536×1168 | 1×1 2×2 3×3 | 0.2ms~15s |
| E3CMOS18000CA | 18M/AR1820(C) 1/2.3” (6.14×4.61) | 1.25×1.25 | 0.62V/lux-sec 65.8dB 36.3 | 13.1@4912×3684 34.3@2456×1842 54.4@1228×922 | 1×1 2×2 4×4 | 0.1ms~2s |
| E3CMOS20000CA | 20M/AR2020(C) 1/1.8” (7.17×5.38) | 1.4×1.4 | 8.4 ke-/lux.sec | 20@5120×3840 45@2560×1920 | 1×1 2×2 | 0.2ms~15s |
