C-mount USB3.0 CMOS Cameras
SONY STARVIS 2 CMOS Sensor

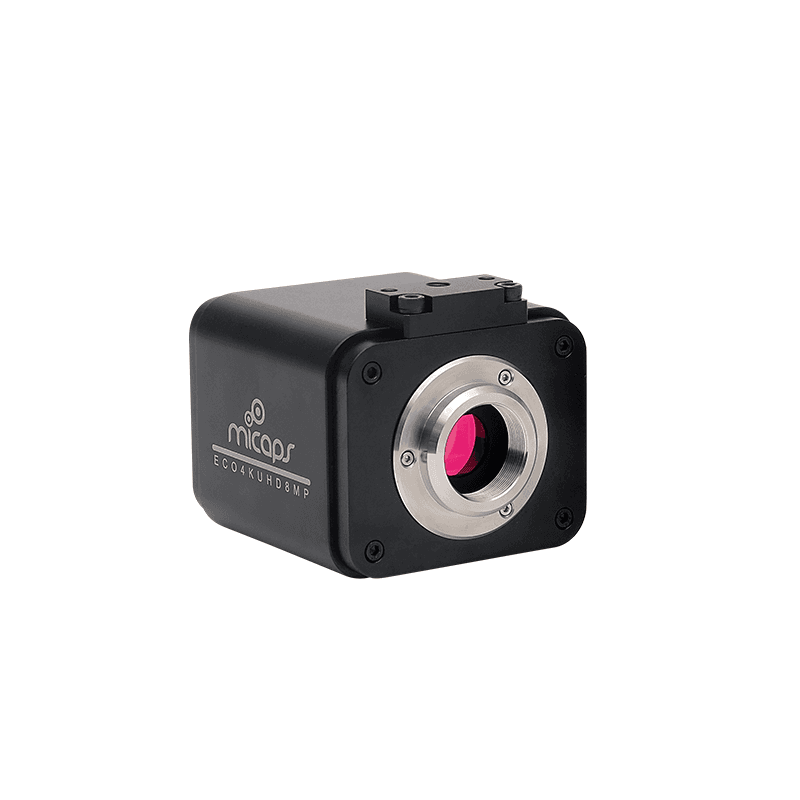

The ECO4KUHD8MP series camera is a cutting-edge live-view imaging system that boasts 4K resolution video at 30 frames per second. It features a Sony Exmor CMOS sensor known for its high sensitivity and low dark current, ensuring crisp images without smearing thanks to its R, G, and B primary color mosaic filters. This camera is designed with a standard C-mount interface, ensuring compatibility with a wide range of microscopy systems. It can function as a standalone recorder when connected to an HDMI monitor or TV, or it can be live-streamed to a PC via USB for image capture and video recording. The camera includes hardware 3D denoising, sharpness, and tone mapping control functions. The accompanying Windows software provides tools for image development, measurement, and advanced features like image stitching and extended depth of focus. It can calibrate scales at various magnifications, making it suitable for multi-level inspection tasks. For Mac and Linux users, there’s a lite version of the software available, offering video and image capture capabilities with limited processing features. Overall, the ECO4KUHD8MP 4K series camera is tailored for acquiring digital images from stereo microscopes, biological microscopes, or for on line interactive teaching purposes.
Sony Exmor back illuminated CMOS sensor
4K HDMI/USB multiple video outputs
4K/1080P auto switching according to the display resolution
SD card for the captured image and video storage
Embedded MicorView for the control of the camera
With strong ISP and other related processing functions
MicroView/Microlite software for PC
Micaps software for MAC
ECO4KUHD8MP Microscope Camera, Manufacturers in Haryana, India - MICAPS Skip to content info@micaps.com
Our Products camera
Research / Life Science
Research / Life Science
Research / Life Science
Tri & Penta Head
Fluorescence filters
Research / Life Science
Research / Life Science
Research / Life Science
Cold Light Source
LED Fluorescence for Upright Microscopes
| Model No. | Sensor & Size(mm) | Pixel(µm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| ECO4KUHD8MPCA | 4K/Sony IMX334(C) 1/1.8″(7.68×4.32) | 2.0×2.0 | 505 mv with 1/30s 0.13 mv with 1/30s | 30@3840×2160(HDMI) 20@3840×2160(USB) | 1×1 | 0.04ms~1000ms |
| ECOFL4KUHD8MPCB | Sony IMX485(C) 1/1.2″(11.14×6.26) | 2.9×2.9 | 2188mv with 1/30s 0.39mv with 1/30s | 30@3840×2160(HDMI) 20@3840×2160(USB) | 1×1 | 0.04ms~1000ms |
| ECO4KUHD8MPCC | 4K/Sony IMX678(C) 1/1.8″(7.68×4.32) | 2.0×2.0 | 1364mv with 1/30s 0.15mv with 1/30s | 30@3840×2160(HDMI) 20@3840×2160(USB) | 1×1 | 0.04ms~1000ms |
| ECO4KUHD8MPCD | Sony IMX585(C) 1/1.2″(11.14×6.26) | 2.9×2.9 | 1028mv with 1/30s 0.13mv with 1/30s | 30@3840×2160(HDMI) 20@3840×2160(USB) | 1×1 | 0.04ms~1000ms |
