C-mount USB2.0 CMOS Cameras
SONY STARVIS 2 CMOS Sensor

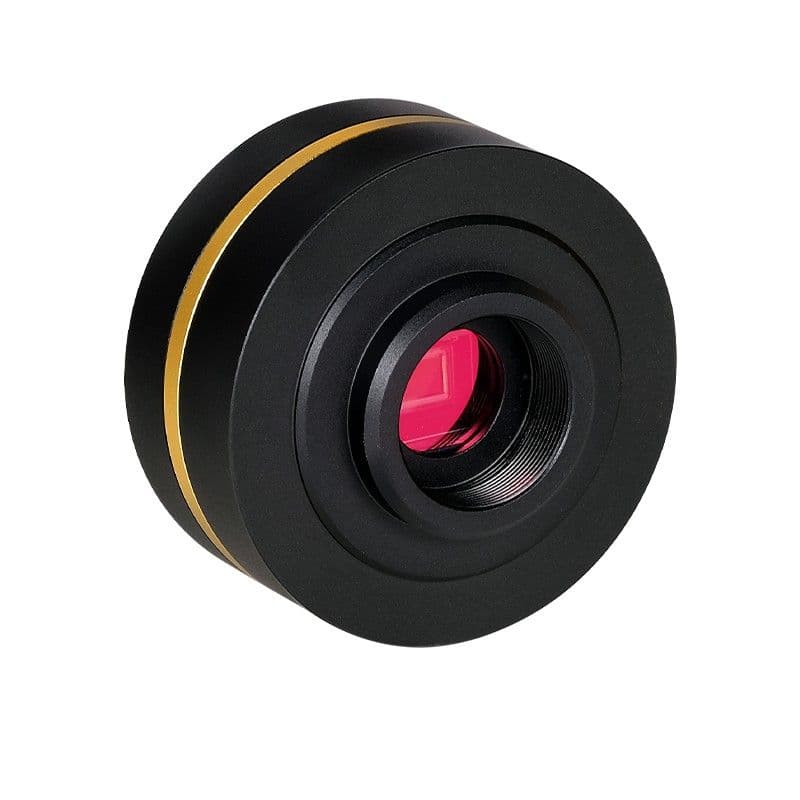

Micaps ECOCMOS Series camera is a powerful yet compact device designed for high-performance imaging. It features a Sony CMOS sensor for capturing images, and its USB 2.0 interface allows for fast data transmission.
The ECOCMOS Series camera hardware resolutions is 2.1 to 12MP and is housed in a durable zinc aluminum alloy casing. Thanks to Micaps advanced MJPEG compression algorithm, along with their unique decoding and image restoration methods in MicroView, this USB 2.0 camera boasts the highest frame rate in the industry. Additionally, the ECOCMOS Series camera is equipped with a built-in Super-fine hardware ISP engine, ensuring excellent color restoration for high-quality images.
ECOCMOS comes with advanced video & image processing application MicroView, Providing Windows/Linux/macOS/Android multiple platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc).
The ECOCMOS Series can be widely used in brightfield light environment and microscope image capture and analysis with moderate frame rate.
Support automatic/manual exposure switching, accurate exposure time control,
Real-time adjustment of exposure target area.
Support automatic/manual/ROI white balance.
Support color adjustment/color mode selection/image flipping
Support histogram adjust/flat field correction/dark field correction/video ROI.
ECOCMOS Microscope Camera, Manufacturers in Haryana, India - MICAPS Skip to content info@micaps.com
Our Products camera
Research / Life Science
Research / Life Science
Research / Life Science
Tri & Penta Head
Fluorescence filters
Research / Life Science
Research / Life Science
Research / Life Science
Cold Light Source
LED Fluorescence for Upright Microscopes
| Model No. | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| ECOCMOS8300CA | 8.3M/IMX274(C) 1/2.5″ (6.22×3.50) | 1.62×1.62 | 236mV 70dB 43dB | 30@3840×2160 30@1920×1080 30@1280×720 30@960×540 | 1×1 1×1 1×1 | 0.1–2000 ms |
| ECOCMOS12000CA | 12M/IMX577(C) 1/2.3″ (5.95×4.71) | 1.55×1.55 | 250LSB 70dB 43dB | 20@3840×3040 20@1920×1520 20@960×760 | 1×1 1×1 1×1 | 0.1–2000 ms |
| ECOCMOS5100CA | 5.1M/AR0521(C) 1/2.5″ (5.70×4.28) | 2.2×2.2 | 18.8ke-/lus 73dB 40dB | 30@2592×1944 30@1280×960 30@640×480 | 1×1 1×1 1×1 | 0.1–1000 ms |
| ECOCMOS5100CB | 5.1M/IMX335(C) 1/2.8″ (5.18×3.89) | 2.0×2.0 | 505mV 70dB 43dB | 26@2592×1944 26@1280×960 26@640×480 | 1×1 1×1 1×1 | 0.1–2000 ms |
| ECOCMOS3100CA | 3.1M/Aptina(C) 1/2.5″ (5.73×4.3) | 2.8×2.8 | 18.8ke-/lus 73dB 40dB | 30@2048×1536 30@1024×768 | 1×1 1×1 | 0.1–1000 ms |
| ECOCMOS2100CA | 2.1M/IMX307(C) 1/2.8″ (5.73×4.3) | 2.9×2.9 | 1300mV 73dB 43dB 40dB | 38@1920×1080 38@960×540 | 1×1 1×1 | 0.1–2000 ms |
