C-mount USB CMOS Cameras
SONY STARVIS CMOS Sensor

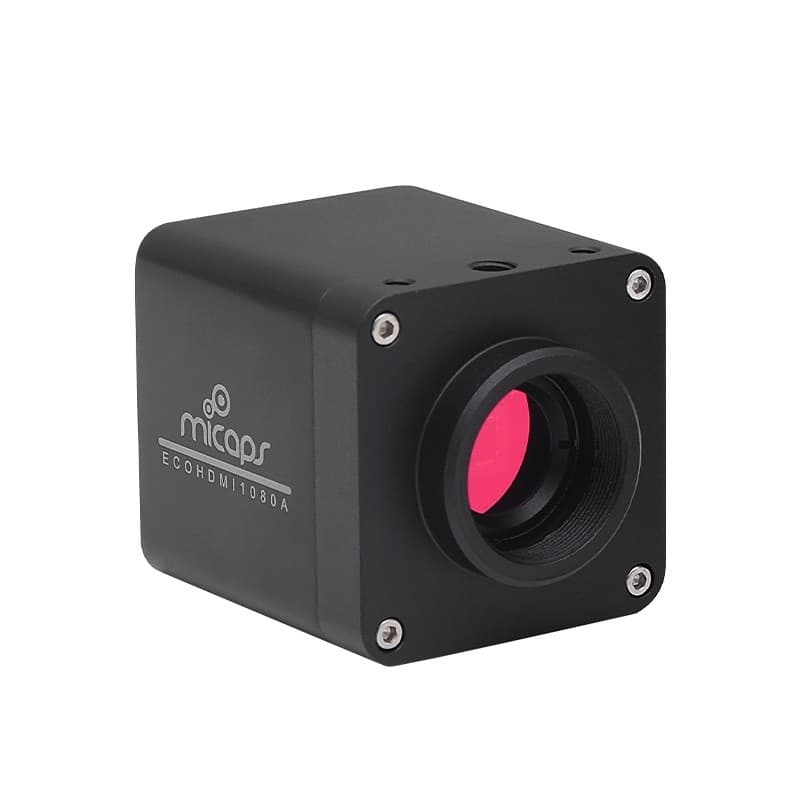

The ECOHDMI1080P series camera is designed specifically for capturing digital images from stereo microscopes and biological microscopes equipped with an HDMI interface.
Sony Starvis back illuminated CMOS sensor
FHD HDMI video outputs
SD card for the captured image and video storage
Embedded XCamView for the control of the camera
With strong ISP and other related processing functions
Rolling Shutter
| Order Code | Sensor & Size (mm) | Pixel (μm) | G Sensitivity / Dark Signal | FPS / Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| MS4KUHD8MPCA | Sony IMX678(C) 1/1.8″ (7.68×4.32) | 2.0 × 2.0 | 1364mv with 1/30s 0.15mv with 1/30s | 30@3840×2160 (HDMI) | 1×1 | 0.04–1000 |
| MS1080P2MPCA | Sony IMX385(C) 1/2″ (7.2×4.05) | 3.75 × 3.75 | 1175mv with 1/30s 0.15mv with 1/30s | 60@1920×1080 (HDMI) | 1×1 | 0.04–1000 |
