CMOS Cameras USB 2.0

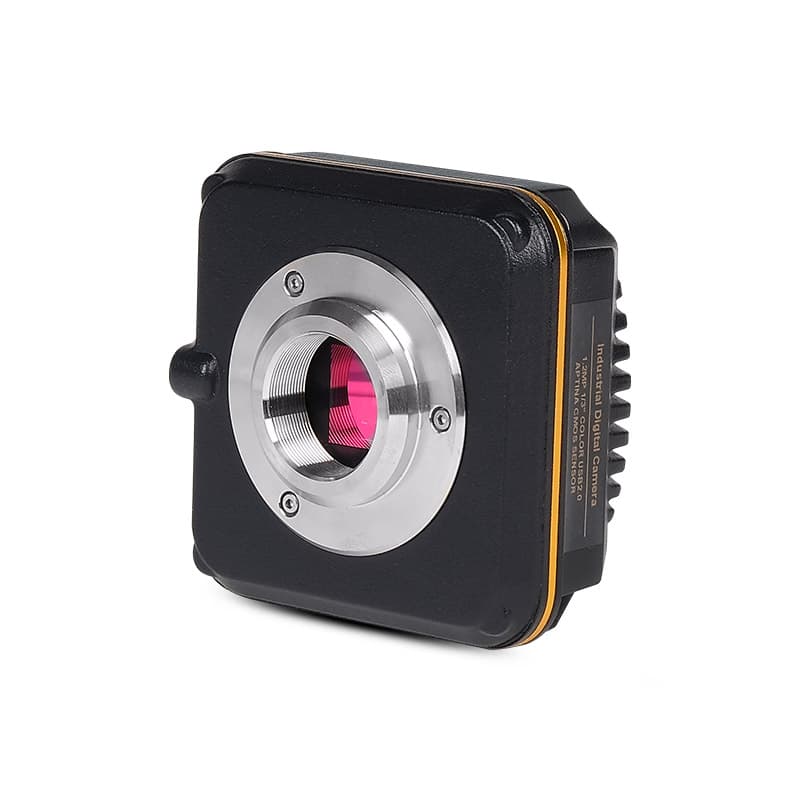

The HPECMOS camera from Micaps is a high-quality USB 2.0 CMOS camera designed for clear, reliable imaging. It features a high-performance CMOS sensor for capturing sharp images and includes onboard frame buffers to help manage data efficiently. With a USB 2.0 interface, it’s easy to connect and use across various systems. The HPECMOS camera comes bundled with MicroView, an advanced video and image processing software. It also includes a comprehensive SDK that supports multiple platforms, including Windows, Linux, macOS, and Android. Developers can work with a variety of programming languages and interfaces like C/C++, C#/VB.NET, Python, Java, DirectShow, and Twain. This camera is well-suited for use in brightfield environments and is ideal for microscope imaging and analysis where moderate speed is sufficient.
| Order Code | Sensor & Size (mm) | Pixel (μm) | G Sensitivity / Dark Signal | FPS / Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| HPECMOS03100CC | 3.1M / IMX123(C) 1/2.8″ (5.12×3.84) | 2.5 × 2.5 | 600mv with 1/30s 0.15mv with 1/30s | 11.5 @ 2048×1536 29.5 @ 1024×768 | 1×1 2×2 | 0.2ms~2000ms |
| HPECMOS01300CD | 1.3M / MT9M111(C) 1/3″ (4.60×3.70) | 3.6 × 3.6 | 2.1V/lux-sec 68.2dB 45dB | 15 @ 1280×1024 26 @ 640×512 48 @ 320×256 | 1×1 2×2 4×4 | 0.14ms~2000ms |
| HPECMOS01200CD | 1.2M / AR0130(C) 1/3″ (4.80×3.60) | 3.75 × 3.75 | 5.5V/lux-sec 85.3dB 44dB | 28 @ 1280×960 30 @ 640×480 | 1×1 2×2 | 0.4ms~2000ms |
