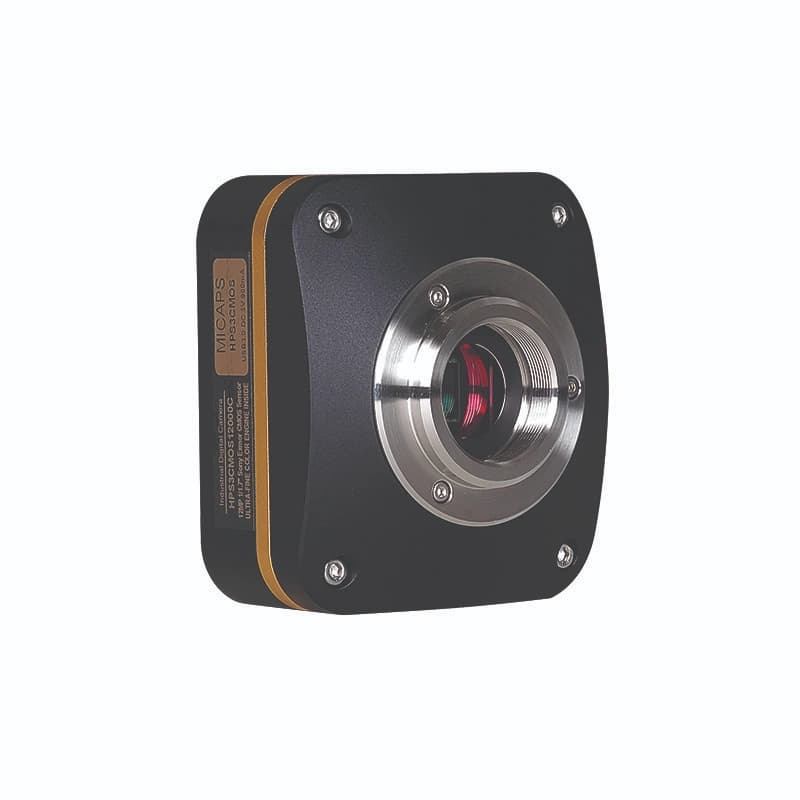

C-mount USB3.0 CMOS Cameras
SONY PREGIUS CMOS Sensor
The HPS3CMOS Series camera uses a high-quality SONY CMOS sensor to capture images, and it employs USB3.0 for fast data transfer. With a hardware resolution of 1.5 to 45 megapixels, it’s housed in a durable CNC aluminum alloy casing. Equipped with a 12-bit Super-fine Hardware Image Signal Processor Video Pipeline (Super-FineTM HISPVP), the HPS3CMOS Series handles tasks like Demosaic, Adjustments, Automatic Exposure, Gain Adjustment, One Push WhiteBalance, Chrominance Adjustment, Saturation Adjustment, Gamma Correction, Luminance Adjustment, and Contrast Adjustment. It processes Bayer data and produces RAW data for 8/12 bit output. This offloads heavy processing tasks from the PC to the Super-FineTM HISPVP, significantly boosting processing speed. The camera comes bundled with the advanced Micaps Micro View video and image processing application. It supports multiple platforms such as Windows, Linux, macOS, and Android, with SDKs available for Native CIC++, C#NB.NET, Python, Java, DirectShow, Twain, and more. The HPS3CMOS Series is well-suited for use in bright field light environments and excels in microscope image capture and analysis, offering a higher frame rate for superior performance.
SONY CMOS sensor with USB3.0 interface.
Ultra low noise and low power dissipation.
Global Shutter.
Standard C-Mount camera.
With advanced video & image processing application Micaps MicroView.
Super-fine Color hardware Color Engine ensuring high frame rates.
(Up to 15 frames for 20M Resolution)
HPS3CMOS Microscope Camera, Manufacturers in Haryana, India - MICAPS Skip to content info@micaps.com
Our Products camera
Research / Life Science
Research / Life Science
Research / Life Science
Tri & Penta Head
Fluorescence filters
Research / Life Science
Research / Life Science
Research / Life Science
Cold Light Source
LED Fluorescence for Upright Microscopes
| Model No. | Sensor & Size(mm) | Pixel Size (µm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| HPS3CMOS45000CA | 45M/IMX492[C] 1.4″ (18.93×13.00) | 2.315×2.315 | 108mv with 1/30s 0.03mv with 1/30s | 8.1@8765×5616 30.0@4080×2808 8.1@7408×5556 33.0@4088×2808 10.4@8176×4320 34.7@4096×2160 62.5@2048×1080 86.5@1344×720 | 1×1(3:2) 2×2(3:2) 1×1 (4:3) 2×2(4:3) 1×1(17:9) 2×2(17:9) 3×3(17:9) 4×4(17:9) | 0.1ms~15s |
| HPS3CMOS45000CB | 45M/IMX492[C] 1.4″ (18.93×13.00) | 2.315×2.315 | 108mv with 1/30s 0.03mv with 1/30s | 8.1 @8176×5616(C) 30.0@4080×2808(M) 8.1 @7408×5556(C) 33.0@3696×2778(M) 10.4@8176×4320(C) 34. 7@4096×2160(M) 62.5@2048×1080(M) 86.5@1344×720(M) | 1×1(3:2) 2×2(3:2) 1×1(4:3) 2×2(4:3) 1×1(17:9) 2×2(17:9) 3×3(17:9) 4×4(17:9) | 0.1ms~15s |
| HPS3CMOS32000CA | 32M/IMX294[C] 1.15″ (12.96×12.96) td> | 2.315×2.315 | 108mv with 1/30s 0.03mv with 1/30s | 8.1 @5600×5600 30.0@2800×2800 30.0@1400×1400 | 1×1 2×2 4×4 | 0.1ms~15s |
| HPS3CMOS25000CA | 25M/IMX511[C] 1/2.3″ (5.519×5.519) td> | 1.12×1.12 | 96.3mv with 1/30s 0.1mv with 1/30s | 12@4928×4928 46@2464×2464 100@1648×1648 | 1×1 2×2 3×3 | 0.013ms~15s |
| HPS3CMOS21000CA | 21M/IMX269[C] 4/3″ (17.4×13.0) | 3.3 x3.3 | 399mv with 1/30s 0.1mv with 1/30s | 17@5280×3954 17@3952×3952 56@2640×1976 67@1760×1316 192@584×438 | 1×1 1×1 2×2 3×3 9×9 | 0.1ms~15s |
| HPS3CMOS20400CA | 20.4M/IMX541[C] 1.1″ (12.32×12.32) | 2.74 x2.74 | 1574mv with 1/30s 0.15mv with 1/30s | 17.5@4496×4496 64.4@2240×2240 64.4@1120×1120 | 1×1 2×2 4×4 | 0.03ms~15s |
| HPS3CMOS20000CA | 20M/IMX183[C] 1″(13.06×8.76) | 2.4 x 2.4 | 462mv with 1/30s 0.21mv with 1/30s | 15@5440×3648 50@2736×1824 60@1824×1216 | 1×1 2×2 3×3 | 0.1ms~15s |
| HPS3CMOS20000CC | 20M/IMX183[C] 1″(13.06×8.76) | 2.4 x 2.4 | 462mv with 1/30s 0.21mv with 1/30s | 20@5440×3648 48@2736×1824 58@1824×1216 | 1×1 2×2 3×3 | 0.1ms~15s |
| HPS3CMOS18000CA | 18M/SONY Special[C] 1 /2.2 “(5.86×4.46) | 1.2 x 1.2 | 130mv with 1/30s 0.1mv with 1/30s | 17@4880×3720 40@2448×1836 50@1728×1296 | 1×1 2×2 3×3 | 0.1ms~15s |
| HPS3CMOS15600CA | 15.6M/SONY Special[C] 1.1″(13.0×13.0) | 3.3 x 3.3 | 399mv with 1/30s 0.1mv with 1/30s | 17@3952×3952 56@1976×1976 67@1316×1316 | 1×1 2×2 3×3 | 0.1ms~15s |
| HPS3CMOS12400CA | 12.4M/IMX545 [C,GS] 1.1″(11.22×8.22) | 2.74 x 2.74 | 1337mv with 1/30s 0.15mv with 1/30s | 28.2@4096×3000 100.9@2048×1500 100.9@1024×750 | 1×1 2×2 4×4 | 0.03ms~15s |
| HPS3CMOS12300CA | 12.3M/IMX304[C,GS] 1.1″(14.13×10.35) | 3.45 x 3.45 | 1146mv with 1/30s 0.1mv with 1/30s | 23.4@4096×3000 46.3@2048×1500 | 1×1 1×1 | 0.244ms~15s |
| HPS3CMOS12000CA | 12M/IMX226[C] 1/1.7″(7.40×5.55) | 1.85 x 1.85 | 280mv with 1/30s 0.1mv with 1/30s | 25@4000×3000 50@2048×1080 | 1×1 2×2 | 0.1ms~15s |
| HPS3CMOS12000CB | 12M/IMX577[C] 1/2″(6.29×4.71) | 1.55 x 1.55 | 250mv with 1/30s 0.25mv with 1/30s | 30@4056×3040 60@2028×1520 120@1014×760 | 1×1 2×2 4×4 | 0.1ms~5s |
| HPS3CMOS12000CC | 12M/IMX676[C] 1/1.6″(7.07×7.07) | 2.0 x 2.0 | 3637mv with 12 bit converted value (HCG) 0.15mv with 1/30s | 27@3536×3536 60@1768×1768 | 1×1 2×2 | 0.013ms~15s |
| HPS3CMOS9000CA | 9.0M/IMX305[C,GS] 1″(14.13×7.45) | 3.45 x 3.45 | 1146mv with 1/30s 0.15mv with 1/30s | 34@4096×2160 60@2048×1080 | 1×1 1×1 | 0.1ms~15s |
| HPS3CMOS8300CB | 8.3M/IMX334[C] 1/1.8″(7.68×4.32) | 2.0 x 2.0 | 505mv with 1/30s 0.1mv with 1/30s | 35@3840×2160 60@1920×1080 | 1×1 2×2 | 0.02ms~15s |
| HPS3CMOS8300CD | 8.3M/IMX585[C] 1/1.2″(11.14×6.26) | 2.9 x 2.9 | 5970(mV/lx/s) 0.13mv with 1/30s | 45@3840×2160 70@1920×1080 | 1×1 2×2 | 0.02ms~15s |
| HPS3CMOS8300CE | 8.3M/IMX678[C] 1/1.8″(7.68×4.32) | 2.0 x 2.0 | 3541(mV/lx/s) 0.15mv with 1/30s | 45@3840×2160 70@1920×1080 | 1×1 2×2 | 0.02ms~15s |
| HPS3CMOS8000CA | 8.0M/IMX294[C] 1.15″(13.00×13.00) | 4.63 x 4.63 | 419mv with 1/30s 0.12mv with 1/30s | 30@2808×2808(14bit) 139@1392×1392 139@696×696 | 1×1 2×2 4×4 | 0.1ms~15s |
| HPS3CMOS6300CA | 6.3M/IMX178[C] 1/1.8″(7.37×4.92) | 2.4 x 2.4 | 425mv with 1/30s 0.15mv with 1/30s | 30@3072×2048 38@1536×1024 | 1×1 2×2 | 0.02ms~15s |
| HPS3CMOS6300CB | 6.3M/IMX178[C] 1/1.8″(7.37×4.92) | 2.4 x 2.4 | 425mv with 1/30s 0.15mv with 1/30s | 59@3072×2048 59@1536x 1024 | 1×1 2×2 | 0.02ms~15s |
| HPS3CMOS5100CA | 5.1M/IMX547[C] 1/1.8″ (6.71×5.61) td> | 2.74 x 2.74 | 1337mv with 1/30s 0.15mv with 1/30s | 63@2448×2048 208.4@1224×1024 | 1×1 2×2 | 0.03ms~15s |
| HPS3CMOS5000CA | 5.0M/IMX264[C,GS] 2/3″(8.45×7.07) | 3.45 x 3.45 | 1146mv with 1/30s 0.15mv with 1/30s | 35@2448×2048 50@1224×1024 | 1×1 1×1 | 0.1ms~15s |
| HPS3CMOS3100CA | 3.1M/IMX265[C,GS] 1/1.8″(7.07×5.30) | 3.45 x 3.45 | 1146mv with 1/30s 0.15mv with 1/30s | 53@2048×1536 85@1024×768 | 1×1 1×1 | 0.1ms~15s |
| HPS3CMOS3100CB | 3.1M/IMX123[C] 1/2.8″(5.12×3.84) | 2.5 x 2.5 | 600mv with 1/30s 0.15mv with 1/30s | 50@2048×1536 50@1920×1080 | 1×1 1×1 | 0.1ms~15s |
| HPS3CMOS2100CA | 2.1M/IMX482[C] 1/1.2″(11.14×6.26) | 5.8 x 5.8 | 8935mv with 1/30s 0.6mv with 1 /30s | 96@1920×1080 | 1×1 | 14us~15s |
| HPS3CMOS2000CA | 2M/IMX385[C] 1/2″(7.2×4.05) td> | 3.75 x 3.75 | 2350mv with 1 /30s 0.15mvwith 1/30s | 125@1920×1080 | 1×1 | 0.01ms~15s |
| HPS3CMOS1500CA | 1.5M/IMX273[C,GS] 1/2.9″(4.966×3.726) | 3.45 x 3.45 | 1146mv with 1/30s 0.15mv with 1/30s | 164@1440×1080 320@720×540 | 1×1 2×2 | 0.1ms~15s |
| HPS3CMOS20000CD | 20M/IMX283[C,RS] 1 “(13.06×8.76) | 2.4 x2.4 | 462mv with 1/30s 0.21mv with 1/30s | 15@5440×3648 50@2736×1824 60@1824×1216 | 1×1 2×2 3×3 | 0.1ms~15s |
