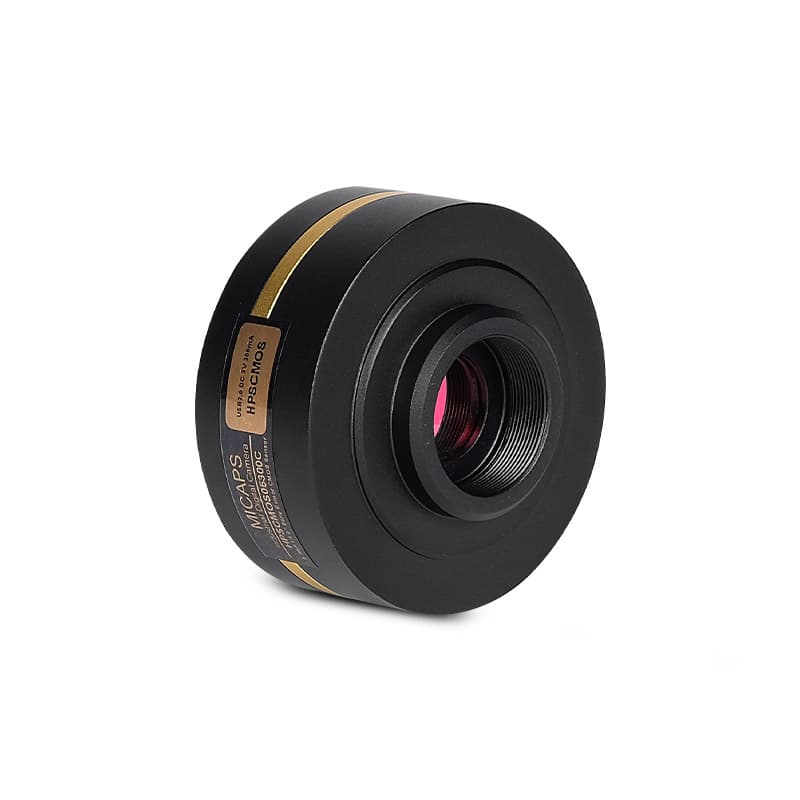

C-mount USB 2.0 CMOS Cameras
SONY CMOS Sensor
The HPSCMOS series camera features a top-notch SONY Exmor CMOS sensor for capturing images, with USB2.0 serving as the data transfer interface. HPSCMOS hardware resolutions range from 1.2M to 8.3M and come with the integrated CNC aluminum alloy compact housing. It comes equipped with the MicroView application for advanced video and image processing. The camera also offers a versatile range of platform support, including Windows, Linux, macOS, and Android, along with multiple SDK options (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.). Ideal for bright field light environments, the HPSCMOS is well-suited for microscope image capture and analysis, and analysis, boasting a higher frame rate.
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| HPSCMOS8300CA | 8.3M/IMX274(C) 1/2.5″(6.22×3.50) | 1.62×1.62 | 236mv with 1/30s 0.1mv with 1/30s | 4@3840×2160 16@1920×1080 | 1×1 2×2 | 0.244ms~15s |
| HPSCMOS6600CA | 6.6M/IMX326(C) 1/2.9″(4.98×3.50) | 1.62×1.62 | 236mv with 1/30s 0.1mv with 1/30s | 5@3072×2160 6@2592×1944 6@3072×1728 7@2160×2160 | 1×1 1×1 1×1 1×1 | 0.244ms~15s |
| HPSCMOS5300CA | 5.3M/IMX178(C) 1/1.9″(7.37×4.15) | 2.4×2.4 | 425mv with 1/30s 0.15mv with 1/30s | 5.5@3072×1728 35@1280×720 | 1×1 1×2 | 0.105ms~15s |
| HPSCMOS5000CA | 5.0M/IMX335(C) 1/2.8″(5.18×3.89) | 2.0×2.0 | 505mv with 1/30s 0.13mv with 1/30s | 6.4@2592×1944 26.7@1296×972 | 1×1 2×2 | 0.1ms~15s |
| HPSCMOS3100CA | 3.1M/IMX123(C) 1/2.8″(5.12×3.84) | 2.5×2.5 | 600mv with 1/30s 0.15mv with 1/30s | 11.5@2048×1536 18.3@1920×1080 18.1@1600×1200 29.5@1024×768 | 1×1 1×1 1×1 2×2 | 0.105ms~15s |
| HPSCMOS2000CA | 2.0M/IMX290(C) 1/2.8″(5.56×3.13) | 2.9×2.9 | 1300mv with 1/30s 0.15mv with 1/30s | 17@1920×1080 | 1×1 | 0.105ms~15s |
| HPSCMOS1200CA | 1.2M/IMX224(C) 1/3″(4.80×3.60) | 3.75×3.75 | 2040mv with 1/30s 0.15mv with 1/30s | 27@1280×960 54@640×480 | 1×1 2×2 | 0.105ms~15s |
