C-mount USB 3.0 CMOS Cameras
SONY PREGIUS CMOS Sensor

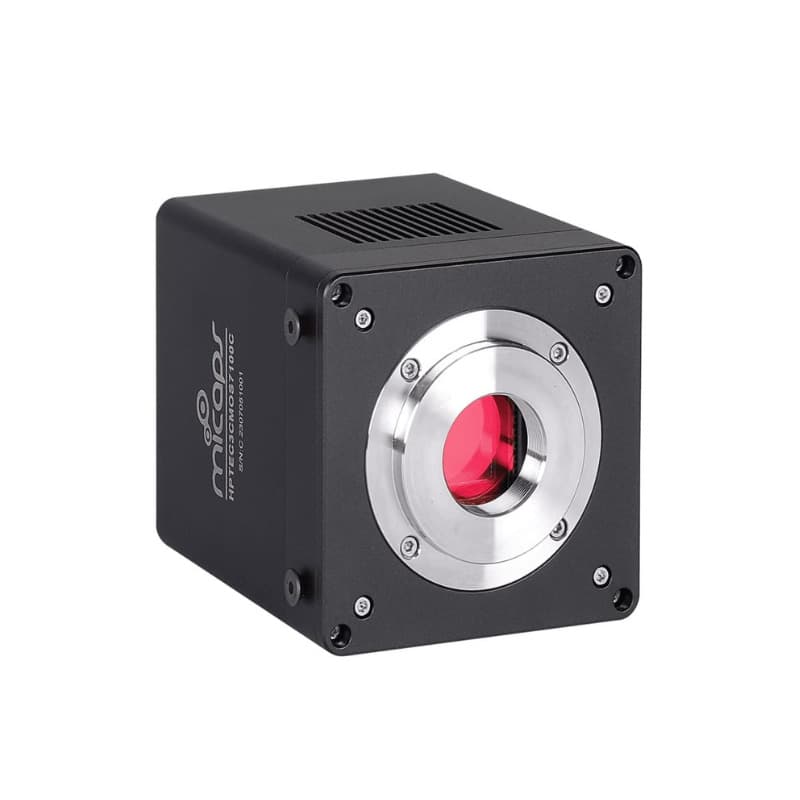

The HPTEC3CMOS camera utilizes a SONY PREGIUS CMOS sensor for capturing images, and it connects via USB 3.0 for efficient data transfer. The HPTEC3CMOS hardware resolutions range is 0.5MP to 45MP, housed in a compact CNC aluminum alloy casing with Two-stage TE-cooling. Equipped with a two-stage peltier cooling system, the sensor chip can reach temperatures as low as -42 degrees below the ambient temperature. This feature significantly improves the signal-to-noise ratio and reduces image noise. The camera is designed with a smart structure to enhance heat radiation efficiency and prevent moisture-related issues. An controllable electric fan is incorporated to expedite the heat dissipation process.
The HPTEC3CMOS comes bundled with the advanced Micaps MicroView application for video and image processing. It supports multiple platforms, including Windows, Linux, macOS, and Android, with SDKs for various programming languages such as Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, and more. This camera is well-suited for applications in low-light environments, as well as capturing and analyzing microscope fluorescence images. Additionally, it can be utilized for deep-sky astronomy applications.
| Model No. | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| HPTEC3CMOS45000MA | 45M/IMX492(M) 4/3″(19.11×13.00) | 2.315×2.315 | 351mV with 1/30s 0.12mV with 1/30s | 8.1@8176×5616 30.0@4080×2808 8.1@7408×5556 33.0@3696×2778 10.4@8176×4320 34.7@4096×2160 62.5@2048×1080 86.5@1360×720 8 Bit / 12 Bit | 1×1(3:2) 2×2(3:2) 1×1(4:3) 2×2(4:3) 1×1(17:9) 2×2(17:9) 3×3(17:9) 4×4(17:9) | 0.1ms~1h |
| HPTEC3CMOS26000CA | 26M/IMX571(C) 1.8”(23.48×15.67) APS-C | 3.76×3.76 | 485mv with 1/30s 0.07mv with 1/30s | 14@6224×4168 37@3104×2084 110@2064×1386 8 Bit / 16 Bit | 1×1 2×2 3×3 | 0.1ms~1h |
| HPTEC3CMOS26000MA | 26M/IMX571(M) 1.8”(23.48×15.67) APS-C | 3.76×3.76 | 871mv with 1/30s 0.07mv with 1/30s | 14@6224×4168 37@3104×2084 110@2064×1386 8 Bit / 16 Bit | 1×1 2×2 3×3 | 0.1ms~1h |
| HPTEC3CMOS21000CA | 21M/IMX269(C) 4/3″(17.4×13.1) | 3.3×3.3 | 400mv with 1/30s 0.1mv with 1/30s | 17@5280×3954 17@3952×3952 56@2640×1976 67@1760×1316 192@584×438 8 Bit / 12 Bit | 1×1 1×1 2×2 3×3 9×9 | 0.1ms~1h |
| HPTEC3CMOS20000CA | 20M/IMX183(C) 1”(13.056×8.755) | 2.4×2.4 | 462mv with 1/30s 0.21mv with 1/30s | 19.0@5440×3648 48.8@2736×1824 59.4@1824×1216 8 Bit / 12 Bit | 1×1 2×2 3×3 | 0.1ms~1h |
| HPTEC3CMOS20000MA | 20M/IMX183(M) 1″(13.056×8.755) | 2.4×2.4 | 388mv with 1/30s 0.21mv with 1/30s (F8.0) | 19.0@5440×3648 48.8@2736×1824 59.4@1824×1216 8 Bit / 12 Bit | 1×1 2×2 3×3 | 0.1ms~1h |
| HPTEC3CMOS16000CA | 16M/MN34230PLJ(C) 4/3″(17.6×13.3) | 3.8×3.8 | 2413LSB 89.1LSB (Gain = 0dB) | 6@4640×3506 20@2304×1750 48.0@1536×1160 8 Bit / 12 Bit | 1×1 2×2 3×3 | 0.15ms~1h |
| HPTEC3CMOS16000MA | 16M/MN34230ALJ(M) 4/3″(17.6×13.3) | 3.8×3.8 | 2650LSB 89.1LSB (Gain = 0dB) | 22.5@4648×3506 43.0@2304×1750 48.0@1536×1168 8 Bit / 12 Bit | 1×1 2×2 3×3 | 0.15ms~1h |
| HPTEC3CMOS10300CA | 10.3M/IMX294(C) 4/3″(19.11×13.0) | 4.63×4.63 | 419mv with 1/30s 0.12mv with 1/30s | 30.0@4128×2808 38.5@4096×2160 59.8@2048×1080 87.2@1360×720 8 Bit / 14 Bit | 1×1 1×1 2×2 3×3 | 0.15ms~1h |
| HPTEC3CMOS10300MA | 10.3M/IMX492(M) 4/3″(19.11×13.0) | 4.63×4.63 | 701mv with 1/30s 0.12mv with 1/30s | 40@2992×3000 62@1488×1500 186@992×998 8 Bit / 14 Bit | 1×1 1×1 2×2 3×3 | 0.15ms~1h |
| HPTEC3CMOS9000CA | 9M/IMX533(C) 1″(11.28×11.28) | 3.76×3.76 | 534mv with 1/30s 0.04mv with 1/30s | 40@2992×3000 62@1488×1500 186@992×998 8 Bit / 14 Bit | 1×1 2×2 3×3 | 0.1ms~1h |
| HPTEC3CMOS9000MA | 9M/IMX533(M) 1″(11.28×11.28) | 3.76×3.76 | 534mv with 1/30s 0.04mv with 1/30s | 40@2992×3000 62@1488×1500 186@992×998 8 Bit / 14 Bit | 1×1 2×2 3×3 | 0.1ms~1h |
| HPTEC3CMOS8300CA | 8.3M/IMX585(C) 1/1.2″(11.4×6.26) | 2.9×2.9 | 5970mv with 1/30s 0.15mv with 1/30s | 45@3840×2160 70@1920×1080 8 Bit / 12 Bit | 1×1 2×2 | 0.1ms~1h |
| HPTEC3CMOS7100CA | 7.0M/IMX428(C,GS) 1.1″(14.4×9.5) | 4.5 × 4.5 | 2058mv with 1/30s 0.15mv with 1/30s | 51.3@3200×2200 133.8@1584×1100 8 Bit / 12 Bit | 1×1 1×1 | 0.1ms~1h |
| HPTEC3CMOS7100MA | 7.0M/IMX428(M,GS) 1.1″(14.4×9.5) | 4.5 × 4.5 | 3354mv with 1/30s 0.15mv with 1/30s | 51.3@3200×2200 133.8@1584×1100 8 Bit / 12 Bit | 1×1 1×1 | 0.1ms~1h |
| HPTEC3CMOS23000CA | 2.3M/SC2110(C,RS) 1.69″(23.0×14.4) | 12×12 | 120000 mV/lux·s @ HCG | 120@1920×1200 8 Bit / 12 Bit | 1×1 | 0.1ms~1h |
| HPTEC3CMOS23000MA | 2.3M/SC2110(M,RS) 1.69″(23.0×14.4) | 12×12 | 120000 mV/lux·s @ HCG | 120@1920×1200 8 Bit / 12 Bit | 1×1 | 0.1ms~1h |
| HPTEC3CMOS17000CA | 1.7M/IMX432(C,GS) 1.1″(14.4×9.5) | 9.0 × 9.0 | 4910mv with 1/30s 0.3mv with 1/30s | 33@1600×1100 | 1×1 | 0.1ms~1h |
| HPTEC3CMOS17000MA | 1.7M/IMX432(M,GS) 1.1″(14.4×9.5) | 9.0 × 9.0 | 8100mv with 1/30s 0.3mv with 1/30s | 94@1600×1100 | 1×1 | 0.1ms~1h |
| HPTEC3CMOS13000MA | 1.3M/GLUX9701BSI(M,UXY) 1″(12.493×9.994) | 9.76 × 9.76 | 2.57×10⁸/(e-/(W/(m2).s)) QE@89% @610nm 0.08(e-/s/pix)@-28C | 30fps@1280×1024 30fps@640×512 8 Bit / HDR 16 Bit | 1×1 2×2 | 0.1ms~1h |
| HPTEC3CMOS500MA | 0.5M/GLUX1605BSI(M,UV) 1″(12.8×9.6) | 16.0 × 16.0 | TBD | 60.0@800×600 60.0@400×300 8 Bit / HDR 16 Bit | 1×1 2×2 | 0.1ms~1h |
