C-mount USB CMOS Cameras
SONY EXMOR/STARVIS CMOS Sensor
The Micaps MicroSharp(MS) Series camera is not only compact but also delivers high performance as a USB flash drive CMOS camera. It utilizes SONY STARVIS CMOS sensors for image capture, and USB serves as the data transfer interface.

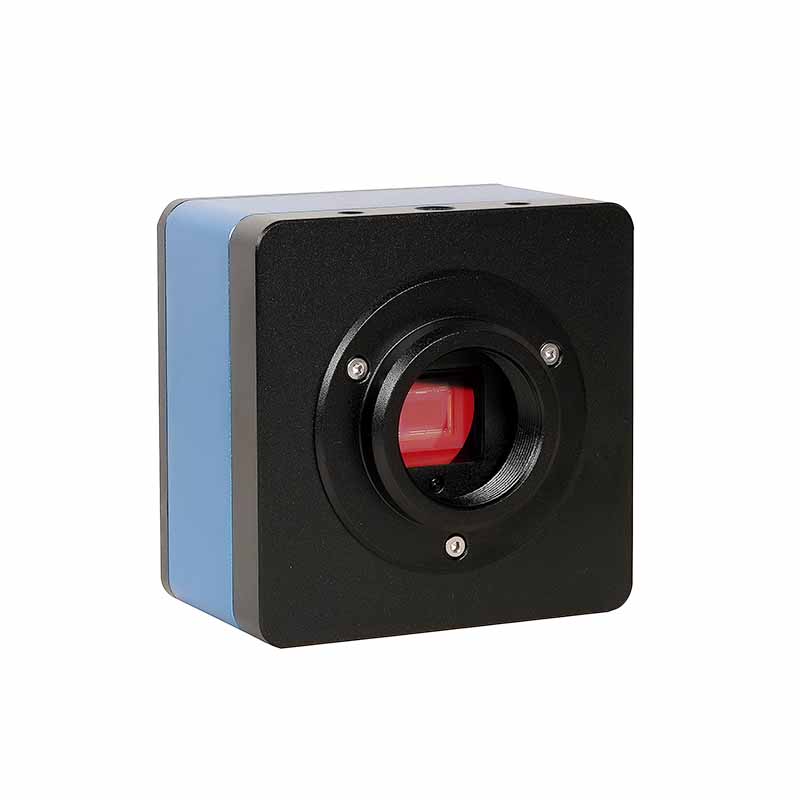

MicroSharp(MS) Series camera with Sony Exmor/STARVIS back-illuminated CMOS sensor
Embedded microView software for controlling cameras with measurement, grid line overlay, and custom templates
Offering convenient features like automatically finding edges, measuring the distance between parallel lines, and calculating the dimensions of rectangles without manual input.
You can use a USB flash drive to store images and videos you capture. Plus, you can preview and play them locally. There are also features for comparing pictures side by side and turning pictures into videos.
The ISP (Image Signal Processor) is top-notch, with features like improving dark areas, making images sharper, and reducing 3D noise for better quality.
It’s easy to switch between default modes for both biological and stereoscopic microscopes.
This makes it super convenient for users working in various situations.
MicroSharp(MS) Microscope Camera Manufacturers in Haryana, India - MICAPS Skip to content info@micaps.com
Our Products camera
Research / Life Science
Research / Life Science
Research / Life Science
Tri & Penta Head
Fluorescence filters
Research / Life Science
Research / Life Science
Research / Life Science
Cold Light Source
LED Fluorescence for Upright Microscopes
| Order Code | Sensor & Size (mm) | Pixel (μm) | G Sensitivity / Dark Signal | FPS / Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| MS4KUHD8MPCA | Sony IMX678(C) 1/1.8″ (7.68×4.32) | 2.0 × 2.0 | 1364mv with 1/30s 0.15mv with 1/30s | 30@3840×2160 (HDMI) | 1×1 | 0.04–1000 |
| MS1080P2MPCA | Sony IMX385(C) 1/2″ (7.2×4.05) | 3.75 × 3.75 | 1175mv with 1/30s 0.15mv with 1/30s | 60@1920×1080 (HDMI) | 1×1 | 0.04–1000 |
