C-mount USB3.0 CMOS Cameras
SONY STARVIS 2 CMOS Sensor

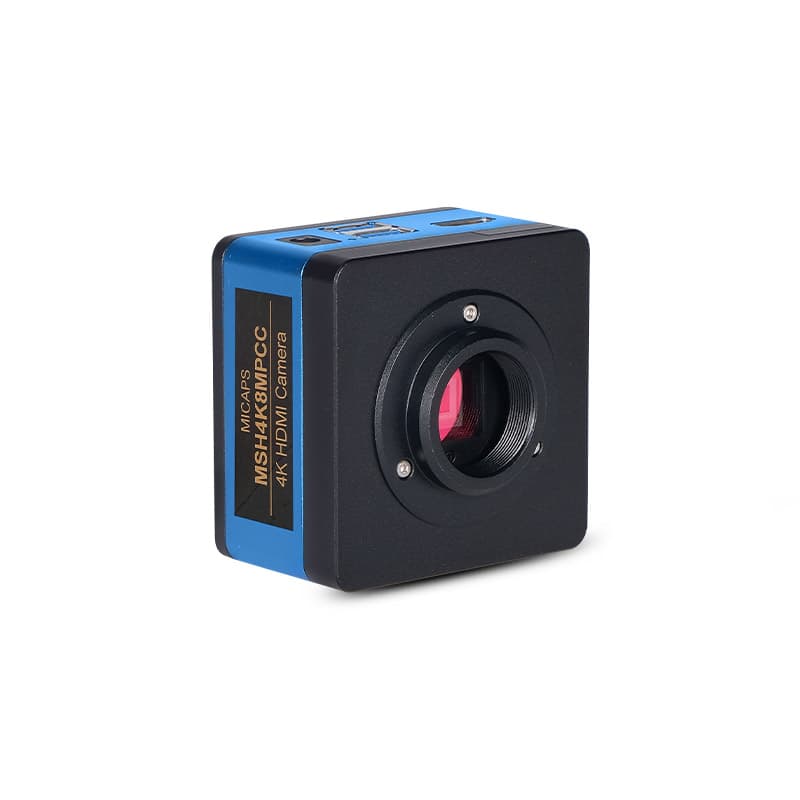

The MSH4K8MPCC HDMI Camera is intended for acquisition of digital images from stereo microscopes, biological microscopes. Here are basic characteristics of the camera:
Sony STARVIS 2 back-illuminated CMOS sensor
4K/1080P auto switching according to monitor resolution
Support 4K 60fps low delay HDMI output mode, with an average delay of 40ms
USB flash drive for captured image and video storage, support local preview and playback
Support the capture and display of RAW format images
Supports USB voice control module, enabling real-time control of the camera through voice commands for taking photos, recording videos, freezing, and other operations
Supports scanning gun to capture images
Excellent ISP with local tone mapping and 3D denoising
New browsing function, providing rich file operation functions, image to image comparison, image to real-time video comparison, multi-image EDF function, multi-image Stitch function
Provide real-time video EDF function and real-time video WDR output function
Provide real-time Stitch function to obtain higher quality images through real-time processing
Provide two sets of default ISP parameters for biological microscope and stereo microscope
Embedded MicroView for the control of the camera and image processing, supporting automatic edge finding and measurement functions
MSH4K8MPCC 4K HDMI Microscope Camera, Manufacturers in Haryana, India - MICAPS Skip to content info@micaps.com
Our Products camera
Research / Life Science
Research / Life Science
Research / Life Science
Tri & Penta Head
Fluorescence filters
Research / Life Science
Research / Life Science
Research / Life Science
Cold Light Source
LED Fluorescence for Upright Microscopes
| Model No. | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| MSH4K8MPCC | Sony IMX678(C) 1/1.8”(7.68×4.32) | 2.0×2.0 | 3541mv with 1/30s 0.15mv with 1/30s | 60@3840*2160(HDMI) | 1×1 | 0.019~1000 |
