C-mount USB 3.0 CMOS Cameras
SONY STARVIS 2 CMOS Sensor

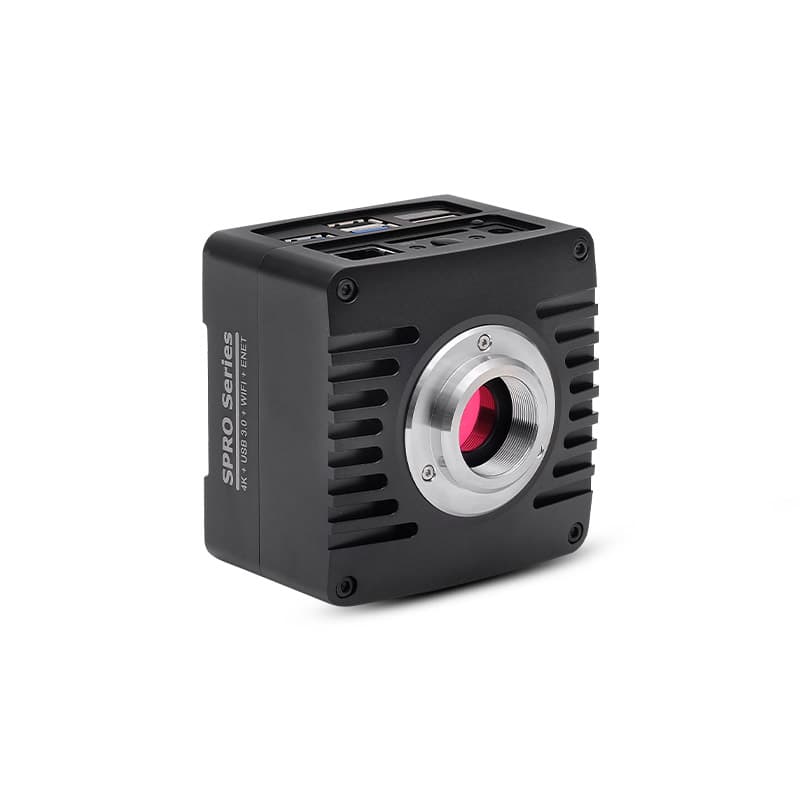

The SPRO4KUHD8MP series Camera is designed for capturing digital images from stereo microscopes, biological microscopes, and for use in online interactive teaching. Here are its main features:
Sony STARVIS 2 back-illuminated CMOS sensor
Rolling Shutter
4K HDMI / NETWORK / USB multiple video synchronous outputs
4K/1080P auto switching according to monitor resolution
Support 4K 60fps low delay HDMI output mode, with an average delay of 40ms
SD card/USB flash drive for captured image and video storage, support local preview and playback
New browsing function, providing rich file operations, image to real-time video comparison
Excellent ISP with local tone mapping and 3D denoising
Provide real-time video EDF function and real-time video WDR output function
Provide two sets of default ISP parameters for biological and stereo microscope
iOS/Android applications for smart phones or tablets
SPRO4KUHD8MP 4K HDMI USB CMOS Camera for Microscopy Applications | MICAPS Skip to content info@micaps.com
Our Products camera
Research / Life Science
Research / Life Science
Research / Life Science
Tri & Penta Head
Fluorescence filters
Research / Life Science
Research / Life Science
Research / Life Science
Cold Light Source
LED Fluorescence for Upright Microscopes
| Model No. | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| SPRO4KUHD8MPCA | Sony IMX678(C) 1/1.8”(7.68×4.32) | 2.0×2.0 | 3541mv with 1/30s 0.15mv with 1/30s | 60@3840*2160 | 1×1 | 0.019~1000 |
| SPRO4KUHD8MPCB | Sony IMX585(C) 1/1.2”(11.14×6.26) | 2.9×2.9 | 5970mv with 1/30s 0.13mv with 1/30s | 60@3840*2160 | 1×1 | 0.048~1000 |
