C-mount USB 3.0 CMOS Cameras
SONY STARVIS 2 CMOS Sensor

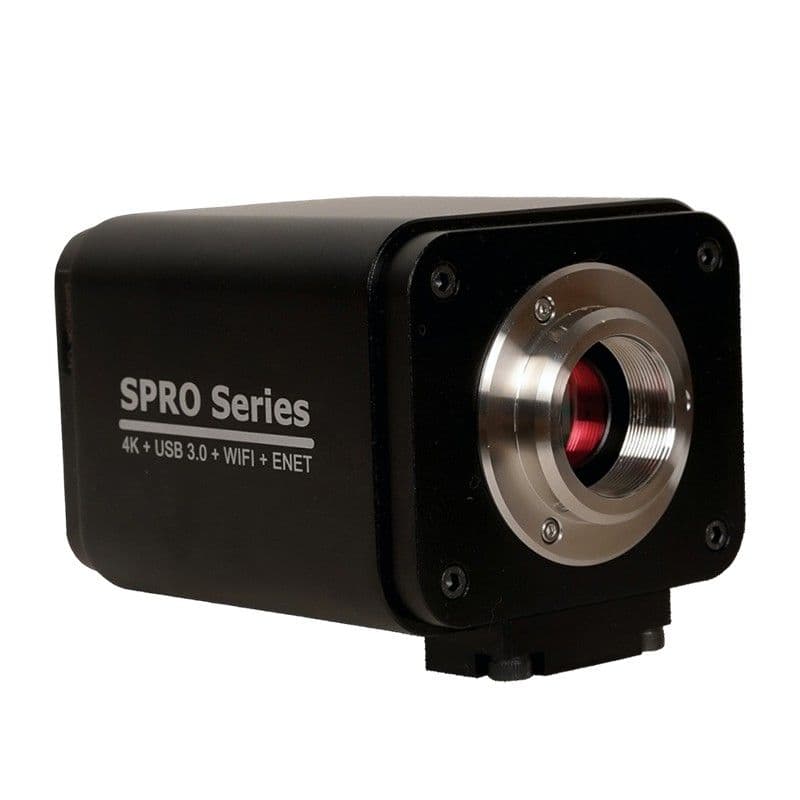

The SPROAF4KUHD8MPCA is a high-performance HDMI camera from Micaps, designed for flexibility and ease of use. It supports multiple output modes—HDMI, Wi-Fi, and USB—allowing you to connect directly to a display, computer, or network. Equipped with an ultra-high-performance CMOS sensor, the camera delivers sharp, detailed images. It can save both photos and videos directly to an SD card or USB flash drive, making it ideal for on-site analysis and future research. Built around an embedded ARM processor, the camera offers powerful functionality in a compact design. You can easily navigate its features using a USB mouse and the intuitive on-screen user interface via HDMI output—no computer required. One of its key highlights is the built-in Auto Focus system, which allows you to focus precisely on specific areas of your sample for clear, accurate imaging. For more advanced control, simply connect via Wi-Fi or USB, and operate the camera through the MicroView software on your PC. Ideal for microscope imaging, field inspections, and a variety of professional or educational applications, the SPROAF4KUHD8MPCA is a powerful tool for high-quality digital imaging.
| Model No. | Sensor & Size (mm) | Pixel (μm) | G Sensitivity / Dark Signal | FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| SPROAF4KUHD8MPCA | Sony IMX678(C) 1/1.8″(7.68×4.32) | 2.0×2.0 | 3541mv with 1/30s 0.15mv with 1/30s | 60@3840×2160 | 1×1 | 0.019 ~ 1000 |
