CMOS eyepiece Cameras USB 2.0

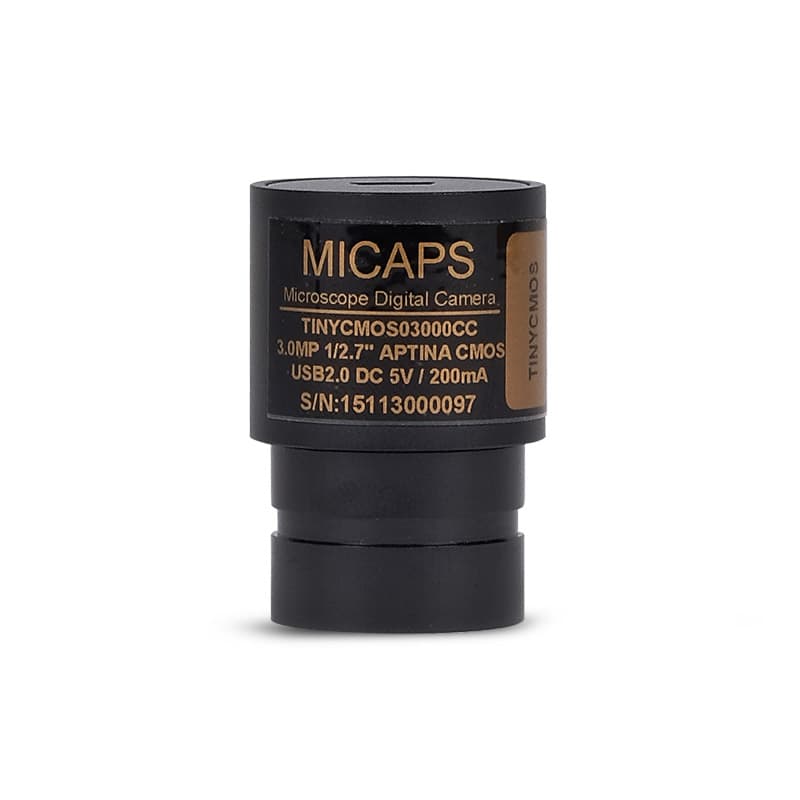

Micaps Tinycmos is a budget-friendly CMOS eyepiece camera designed with a simple, compact structure. It uses a USB 2.0 connection for easy data transfer. This microscope eyepiece camera has a 23.2 mm diameter, making it a perfect fit for most standard microscopes. Despite its small size, it delivers smooth, high-frame-rate video over USB 2.0, ensuring a seamless viewing experience without lag. It comes bundled with Micaps’ powerful image and video processing software, giving you advanced tools for capturing and analyzing your observations. The Tinycmos is ideal for turning traditional monocular or binocular student microscopes into digital microscopes. And with optional adapters (23.2 to 30 mm or 23.2 to 30.75 mm rings), it can also upgrade stereo microscopes into fully digital systems.
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| TINYCMOS12000CA | 12M/IMX577(C) 1/2.3″ (5.954×7.1) | 1.55×1.55 | 250LSB 70dB 43dB | 20@3840×3040 20@1920×1520 20@960×760 | 1×1 1×1 1×1 | 0.1–2000 ms |
| TINYCMOS00921CA | 0.92M/OV9732(C) 1/4″ (3.888×2.208) | 3×3 | 2.066V/lux-sec 72dB@8× gain 39dB | 30@1280×720 30@640×360 | 1×1 1×1 | 0.1ms–650ms |
| TINYCMOS08300CA | 8.3M/IMX274(C) 1/2.5″ (6.22×5.0) | 1.62×1.62 | 236mV 70dB 43dB | 30@3840×2160 30@1920×1080 30@1280×720 30@960×540 | 1×1 1×1 1×1 | 0.1–2000 ms |
| TINYCMOS05100CA | 5.1M/AR0521(C) 1/2.5″ (5.70×4.28) | 2.2×2.2 | 18.8ke-/lus 73dB 40dB | 30@2592×1944 30@1280×960 30@640×480 | 1×1 1×1 1×1 | 0.1–1000 ms |
| TINYCMOS05100CB | 5.1M/IMX335(C) 1/2.8″ (5.18×3.89) | 2.0×2.0 | 505mV 70dB 43dB | 26@2592×1944 26@1280×960 26@640×480 | 1×1 1×1 1×1 | 0.1–2000 ms |
| TINYCMOS03100CA | 3.1M/Aptina(C) 1/2.5″ (5.73×4.3) | 2.8×2.8 | 18.8ke-/lus 73dB 40dB | 30@2048×1536 30@1024×768 | 1×1 1×1 | 0.1–1000 ms |
| TINYCMOS02100CA | 2.1M/IMX307(C) 1/2.8″ (5.73×4.3) | 2.9×2.9 | 1300mV 73dB 43dB | 38@1920×1080 38@960×540 | 1×1 1×1 | 0.1–2000 ms |
| TINYCMOS08300CB | 8.3M/IMX415(C) 1/2.8″ (5.57×3.13) | 1.45×1.45 | 300mV 70dB 44dB | 30@3840×2160 30@1920×1080 30@1280×720 30@960×540 | 1×1 1×1 1×1 1×1 | 0.1–2000 ms |
| TINYCMOS1300CA | 1.3M/Aptina(C) 1/3″ (4.603×3.70) | 3.6×3.6 | NA | 7.5@1280×1024 12.5@1024×768 12.5@800×600 | N/A | Auto |
| TINYCMOS02100CB | 2.1M/SC2332(C) 1/3″ (5.18×2.92) | 2.7×2.7 | 4510mV/lux-s 74dB 38.5dB | 30@1920×1080 30@960×540 | 1×1 1×1 | 0.1–2000 ms |
| TINYCMOS01301CA | 1.3M/Special(C) 1/3″ (5.18×2.92) | 3.41×3.41 | 4510mV/lux-s 74dB 38.5dB | 30@1520×856 30@760×428 | 1×1 1×1 | 0.1–2000 ms |
| TINYCMOS05000CA | 5.0M/Aptina(C) 1/2.5″ (5.70×4.28) | 2.2×2.2 | NA | 2@2592×1944 3@2048×1536 5@1600×1200 7.5@1280×1024 | N/A | Auto |
| TINYCMOS05000CB | 5.0M/SC5033(C) 1/2.7″ (5.18×3.89) | 2.0×2.0 | 2.0V/lux-sec 64dB 35dB | 20@2592×1944 20@2048×1536 20@1600×1200 30@800×600 | N/A | Auto |
| TINYCMOS03000CA | 3.0M/Aptina(C) 1/2.7″ (4.51×3.38) | 2.2×2.2 | NA | 3@2048×1536 5@1600×1200 7.5@1280×1024 | N/A | Auto |
| TINYCMOS03000CB | 3.0M/SmartSens(C) 1/3″ (4.10×3.07) | 2.0×2.0 | 2.0V/lux-sec 64dB 35dB | 20@2048×1536 20@1600×1200 30@800×600 | N/A | Auto |
| TINYCMOS02000CA | 2.0M/Aptina(C) 1/3.2″ (4.48×3.36) | 2.8×2.8 | NA | 5@1600×1200 7.5@1280×1024 20@800×600 22@640×480 | N/A | Auto |
| TINYCMOS02000CB | 2.0M/OV2710(C) 1/2.7″(5.76×3.24) | 3×3 | 3.3V/lux-sec 69dB 39dB | 25@1920×1080 30@1280×1024 30@1280×720 | N/A | Auto |
| TINYCMOS00920CA | 0.92M/BG0703(C) 1/2.7″ (5.80×3.28) | 4.5×4.5 | 5.8V/lux-sec 65dB 43dB | 25@1280×720 25@640×480 | N/A | Auto |
| TINYCMOS00350CA | 0.35M/Aptina(C) 1/4″ (3.58×2.69) | 5.6×5.6 | NA | 30@640×480 | N/A | Auto |
