C-mount USB3.0 CMOS Cameras
SONY STARVIS 2 CMOS Sensor

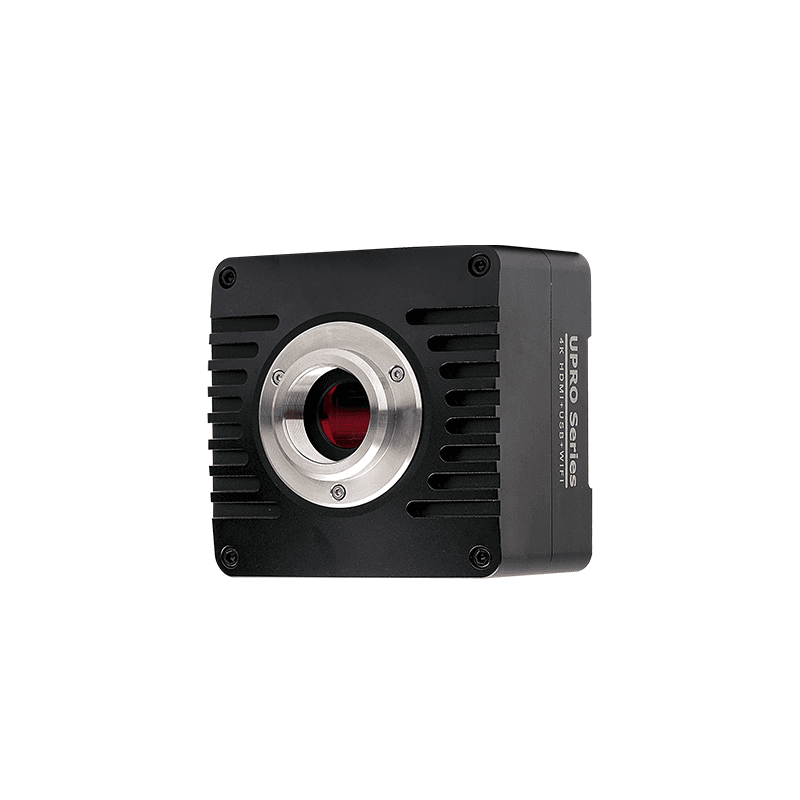

UPRO4KUHD Series HDMI/NETWORK/USB Mul-outputs C-mout CMOS Camera
The UPRO4KUHD series camera is intended to be used for the acquisition of digital images from the stereo microscope, biological microscope or online interactive teaching
Sony STARVIS 2 back-illuminated CMOS sensor.
4K HDMI/ NETWORK/ USB multiple video synchronous outputs.
Rolling Shutter.
4K/1080P auto switching according to monitor resolution.
High frame rate output, supporting up to 4K 75fps.
Support 4K 60fps low delay HDMI output mode, with an average delay of 40ms.
New browsing function, providing rich file operations.
Excellent ISP with local tone mapping and 3D denoising.
Provide two sets of default ISP parameters for biological and stereo microscope.
SD card/USB flash drive for captured image and video storage, support local preview and playback.
UPRO4KUHD Microscope Camera, Manufacturers in Haryana, India - MICAPS Skip to content info@micaps.com
Our Products camera
Research / Life Science
Research / Life Science
Research / Life Science
Tri & Penta Head
Fluorescence filters
Research / Life Science
Research / Life Science
Research / Life Science
Cold Light Source
LED Fluorescence for Upright Microscopes
| Model No. | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| UPRO4KUHD8MPCA | Sony IMX678(C) 1/1.8”(7.68×4.32) | 2.0×2.0 | 1364mv with 1/30s 0.1mv with 1/30s | 72@3840*2160 | 1×1 | 0.019~1000 |
| UPRO4KUHD8MPCB | Sony IMX585(C) 1/1.2”(11.14×6.26) | 2.9×2.9 | 1028mv with 1/30s 0.39mv with 1/30s | 75@3840*2160 | 1×1 | 0.048~1000 |
| UPRO4KUHD16MPCA | Sony IMX283(C) 1/1.1”(13.06×7.34) | 2.4×2.4 | 1874mv with 1/30s 0.84mv with 1/30s | 30@5440*3060 | 1×1 | 0.104~1000 |
